Pr3 (25 pt): The pump shown below delivers 250ft head to the water. The difference in elevation between the two ponds is

Post by answerhappygod »

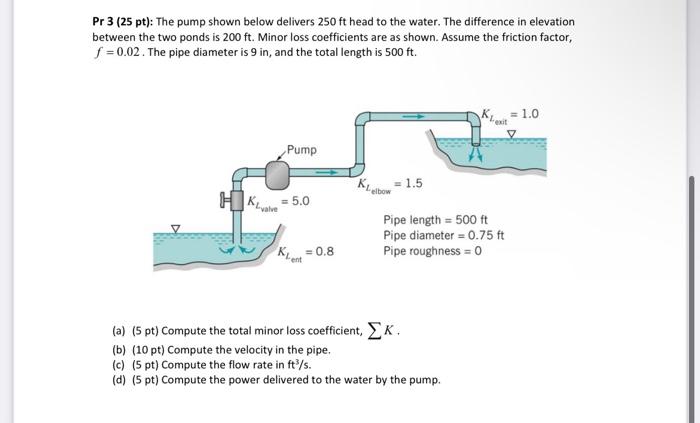

Pr3 25 Pt The Pump Shown Below Delivers 250ft Head To The Water The Difference In Elevation Between The Two Ponds Is 1
Pr3 25 Pt The Pump Shown Below Delivers 250ft Head To The Water The Difference In Elevation Between The Two Ponds Is 1 (27.86 KiB) Viewed 88 times
Pr3 (25 pt): The pump shown below delivers 250ft head to the water. The difference in elevation between the two ponds is 200ft. Minor loss coefficients are as shown. Assume the friction factor, f=0.02. The pipe diameter is 9 in, and the total length is 500ft. (a) (5 pt) Compute the total minor loss coefficient, ∑K. (b) (10pt) Compute the velocity in the pipe. (c) (5pt) Compute the flow rate in ft3/s. (d) ( 5pt) Compute the power delivered to the water by the pump.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
