4. (6 points) Suppose you have access to three types of resistors: 10 resiators, 2 a resistors, and 3Ω resistors. In you

[answerhappygod]

1 (24.09 KiB) Viewed 81 times

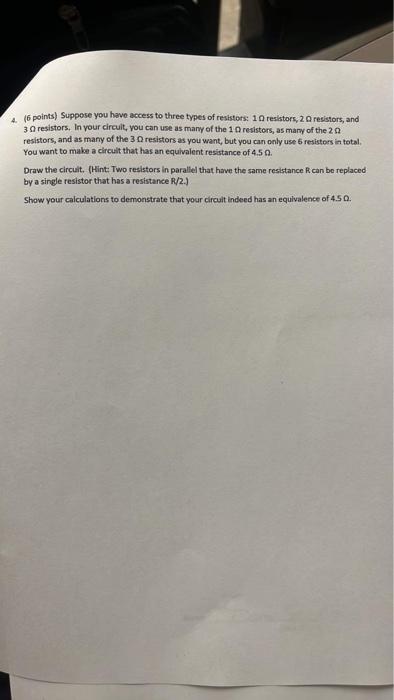

4. (6 points) Suppose you have access to three types of resistors: 10 resiators, 2 a resistors, and 3Ω resistors. In your circult, you can use as many of the 1Ω resisters, as many of the 2Ω resistors, and as many of the 3Ω resistors as you want, but you can only use 6 resistors in total. You want to make a clrcult that has an equivalent resistance of 4.5Ω. Draw the circuit. (Hint: Two resistors in parallel that have the same resistance R can be replaced by a single resistor that has a resistance R/2.) Show your calculations to demonstrate that your circult indeed has an equivalence of 4.50.
