P2. (3 points) The two spheres of equal mass m are able to slide along the horizontal rotating rod. If they are initiall
-
- Site Admin
- Posts: 899556
- Joined: Mon Aug 02, 2021 8:13 am
P2. (3 points) The two spheres of equal mass m are able to slide along the horizontal rotating rod. If they are initiall

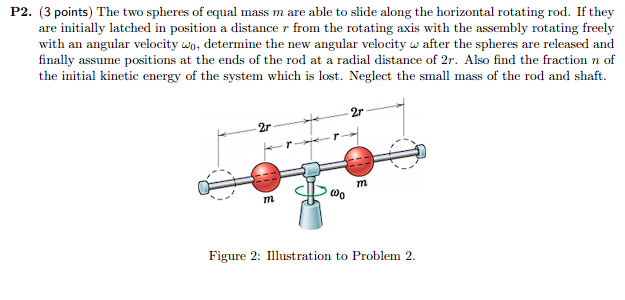

P2. (3 points) The two spheres of equal mass m are able to slide along the horizontal rotating rod. If they are initially latched in position a distance r from the rotating axis with the assembly rotating freely with an angular velocity ω0, determine the new angular velocity ω after the spheres are released and finally assume positions at the ends of the rod at a radial distance of 2r. Also find the fraction n of the initial kinetic energy of the system which is lost. Neglect the small mass of the rod and shaft. Figure 2: Illustration to Problem 2.
