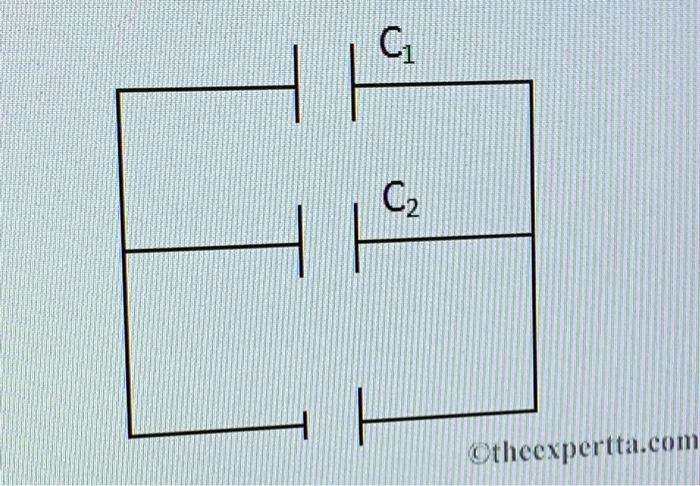

(12\%) Problem 10: Two capacitors are in a circuit, connected in parallel as shown in the figure. The capacitances are C1=5.2μF and C2=6.4μF. The battery carries a voltage of ΔV=7.2 V.
pertta.com

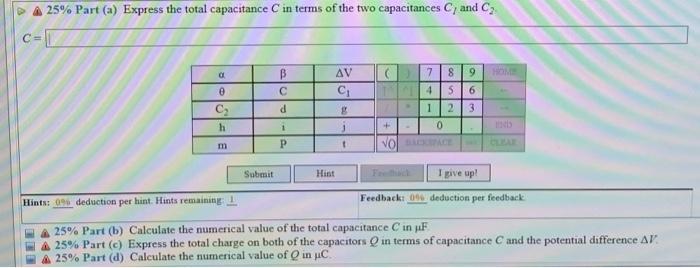

A 25% Part (b) Calculate the numerical value of the total capacitance C in μF A 25% Part (c) Express the total charge on both of the capacitors Q in terms of capacitance C and the potential difference Δ1. a 25% Part (d) Calculate the numerical value of Q in μC.
