b. A thin rectangular plate is acted upon by 4 forces as shown. The 200 N makes an angle of 30 degrees with the horizont

Post by answerhappygod »

B A Thin Rectangular Plate Is Acted Upon By 4 Forces As Shown The 200 N Makes An Angle Of 30 Degrees With The Horizont 1
B A Thin Rectangular Plate Is Acted Upon By 4 Forces As Shown The 200 N Makes An Angle Of 30 Degrees With The Horizont 1 (32.86 KiB) Viewed 110 times

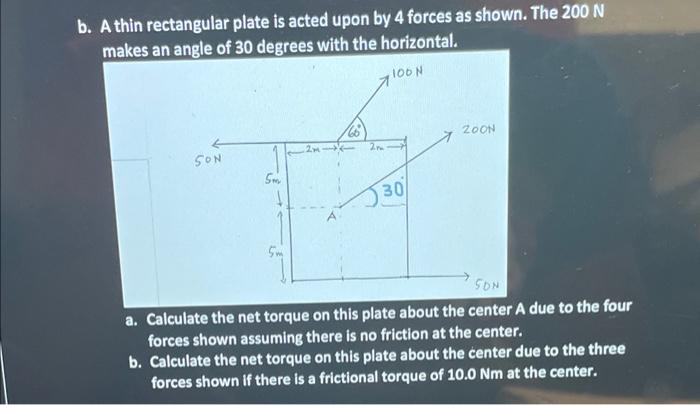

b. A thin rectangular plate is acted upon by 4 forces as shown. The 200 N makes an angle of 30 degrees with the horizontal. a. Calculate the net torque on this plate about the center A due to the four forces shown assuming there is no friction at the center. b. Calculate the net torque on this plate about the center due to the three forces shown if there is a frictional torque of 10.0Nm at the center.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
