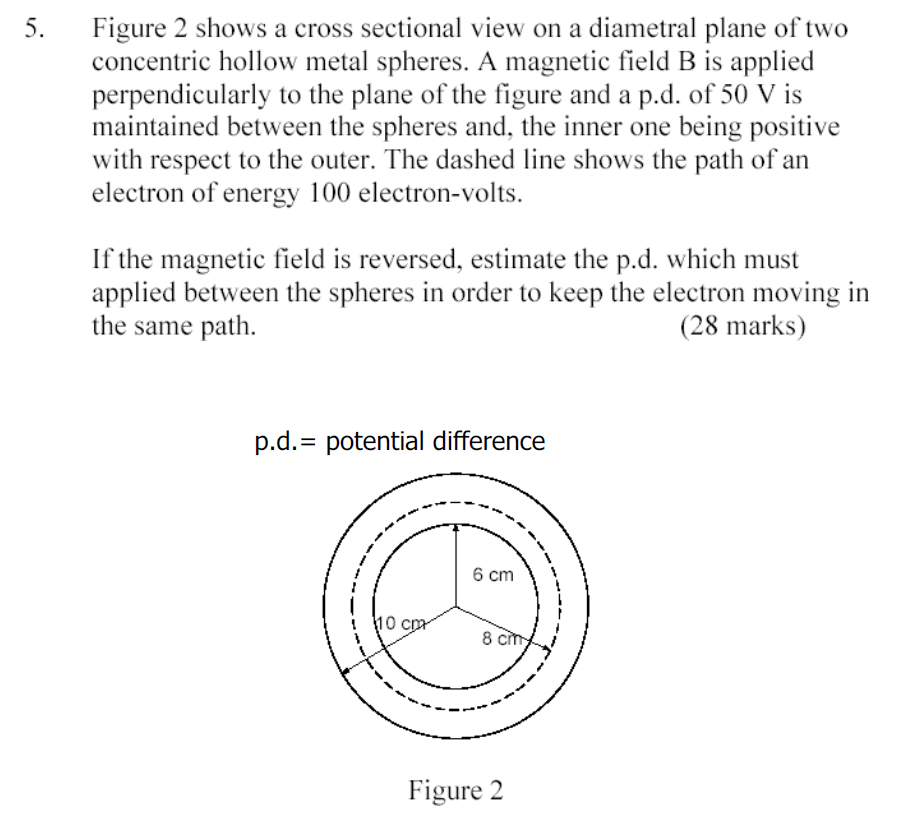

- Figure 2 Shows A Cross Sectional View On A Diametral Plane Of Two Concentric Hollow Metal Spheres A Magnetic Field B Is 1 (141.13 KiB) Viewed 32 times
Figure 2 shows a cross sectional view on a diametral plane of two concentric hollow metal spheres. A magnetic field B is
-
- Site Admin
- Posts: 899556
- Joined: Mon Aug 02, 2021 8:13 am
Figure 2 shows a cross sectional view on a diametral plane of two concentric hollow metal spheres. A magnetic field B is
Figure 2 shows a cross sectional view on a diametral plane of two concentric hollow metal spheres. A magnetic field B is applied perpendicularly to the plane of the figure and a p.d. of 50 V is maintained between the spheres and, the inner one being positive with respect to the outer. The dashed line shows the path of an electron of energy 100 electron-volts. If the magnetic field is reversed, estimate the p.d. which must applied between the spheres in order to keep the electron moving in the same path. (28 marks) p.d. = potential difference Figure 2
