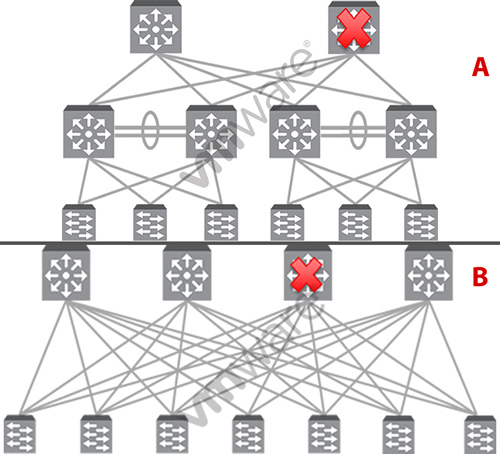

-- Exhibit ---- Exhibit --The Exhibit shows two possible physical network architectures. Each architecture provides a means in dealing with the pictured failure.Based on the exhibit, which architecture provides the highest degree of connectivity in the event of the pictured failure?

Exhibit Exhibit 1 (158.03 KiB) Viewed 70 times

A. Both designs will provide the same percentage of connectivty in times of failure.
B. Neither design is properly architected to work around the displayed failure.
C. Diagram A's architecture will provide the highest percentage of connectivity in times of failure.
D. Diagram B's architecture will provide the highest percentage of connectivity in times of failure.
