Refer to the exhibit. A user is going through a series of dialing steps on a SIP Type B IP phone (for example, a Cisco

[answerhappygod]

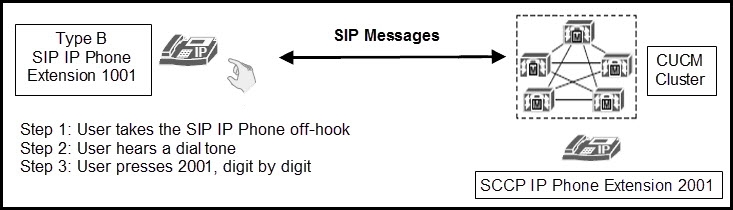

Refer to the exhibit.

A user is going through a series of dialing steps on a SIP Type B IP phone (for example, a Cisco 7975) to call an SCCP IP phone. Both phones are registered to the same Cisco Unified Communications Manager cluster. Assuming the calling SIP phone is associated with a SIP dial rule with a pattern value of 2001, which statement about how digits are forwarded to Cisco Unified Communications Manager for further call processing is true?

Refer To The Ex 1 (85.93 KiB) Viewed 65 times

A. As each digit is pressed on the SIP IP phone, it is sent to Cisco Unified Communications Manager in a SIP NOTIFY message as a KPML event.
B. The SIP IP phone will wait for the interdigit timer to expire, and then send each digit to Cisco Unified Communications Manager as a separate KPML event in a SIP NOTIFY message.
C. The SIP IP phone will wait for the interdigit timer to expire, or for the Dial softkey to be selected before sending all digits to Cisco Unified Communications Manager in a SIP INVITE message.
D. The SIP IP phone will wait for the interdigit timer to expire, or for the Dial softkey to be selected before sending the first digit in a SIP INVITE and the subsequent digits in SIP INFORMATION messages.
E. The SIP IP phone will wait for the interdigit timer to expire, and then send all digits to Cisco Unified Communications Manager in a SIP INVITE message.
