Problem 1: For the element shown below find: 1. The complete state of stress at the orientation of +30° from the horizon

[answerhappygod]

Problem 1 For The Element Shown Below Find 1 The Complete State Of Stress At The Orientation Of 30 From The Horizon 1 (59.56 KiB) Viewed 41 times

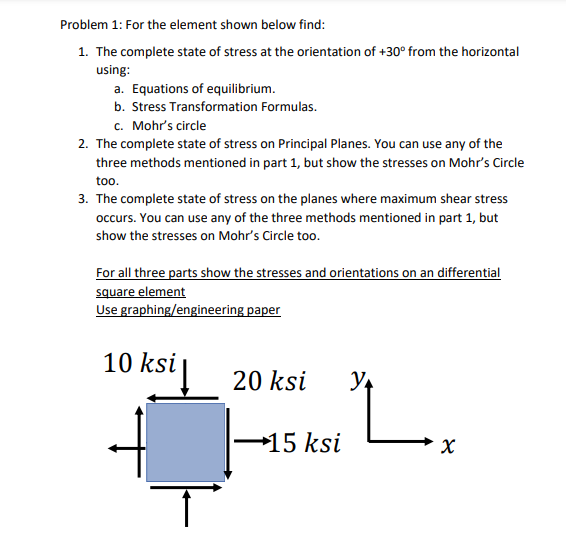

Problem 1: For the element shown below find: 1. The complete state of stress at the orientation of +30° from the horizontal using: a. Equations of equilibrium. b. Stress Transformation Formulas. c. Mohr's circle 2. The complete state of stress on Principal Planes. You can use any of the three methods mentioned in part 1, but show the stresses on Mohr's Circle too. 3. The complete state of stress on the planes where maximum shear stress occurs. You can use any of the three methods mentioned in part 1, but show the stresses on Mohr's Circle too. For all three parts show the stresses and orientations on an differential square element Use graphing/engineering paper 10 ksi[_ 20 ksi ] YA -15 ksi х
