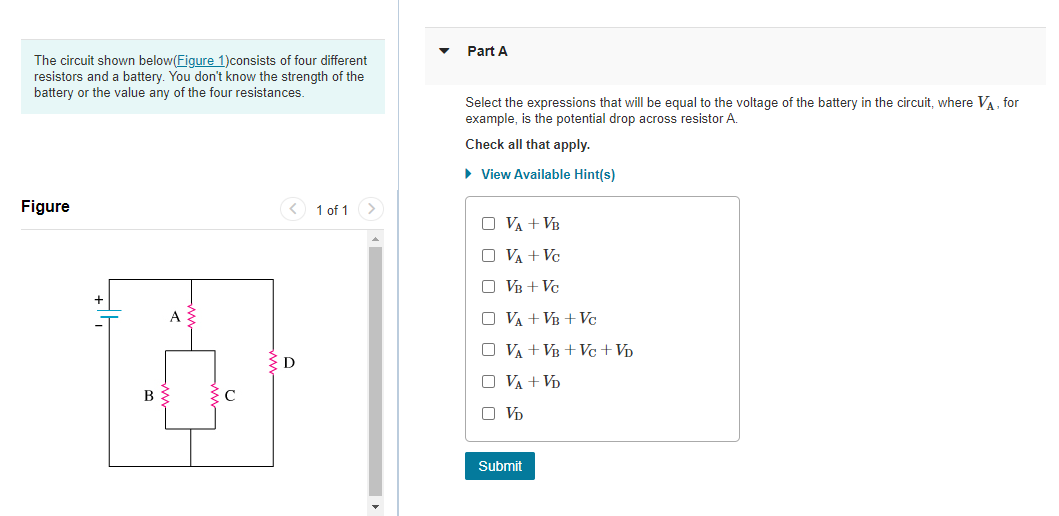

Part A The circuit shown below(Figure 1)consists of four different resistors and a battery. You don't know the strength

[answerhappygod]

Part A The Circuit Shown Below Figure 1 Consists Of Four Different Resistors And A Battery You Don T Know The Strength 1 (33.74 KiB) Viewed 51 times

Part A The circuit shown below(Figure 1)consists of four different resistors and a battery. You don't know the strength of the battery or the value any of the four resistances. Select the expressions that will be equal to the voltage of the battery in the circuit, where VA, for example, is the potential drop across resistor A. Check all that apply. View Available Hint(s) Figure 1 of 1 OVA + VB O VA + VC O VB + VC Αξ O VA + VB + VC O VA + VB + VC+VD SD O VA + VD B3 SC OVD Submit
