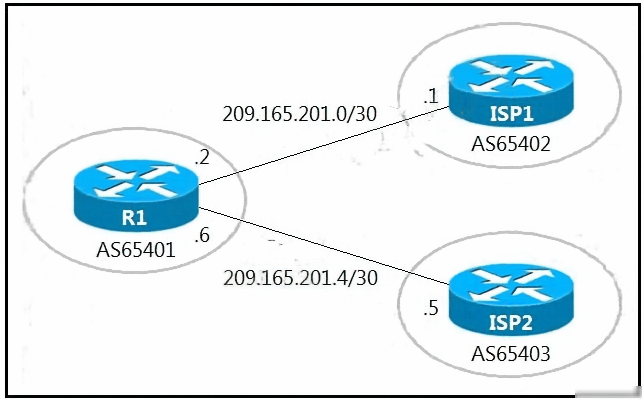

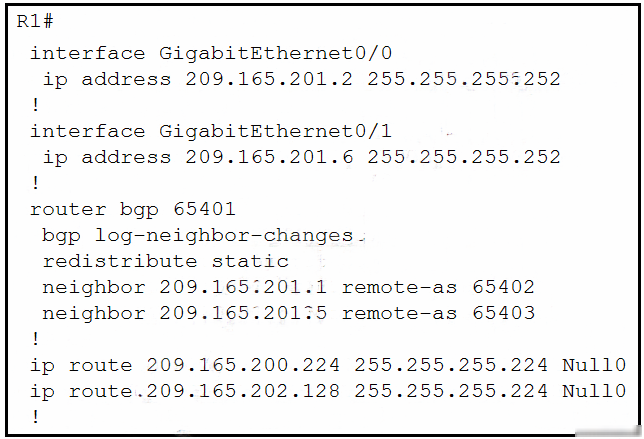

Refer to the exhibits. A company with autonomous system number AS65401 has obtained IP address block 209.165.200.224/27 from ARIN. The company needed more IP addresses and was assigned block 209.165.202.128/27 from ISP2. An engineer in ISP1 reports that they are receiving ISP2 routes from AS65401.
Which configuration on R1 resolves the issue?

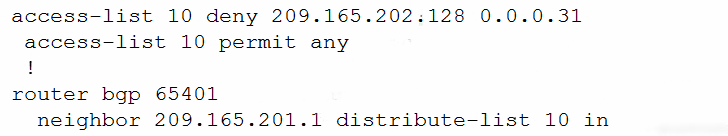

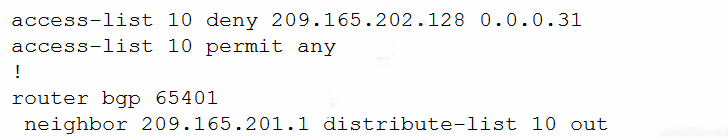

A.
B.
C.
D.
Refer To The Ex 1 (141.32 KiB) Viewed 62 times
Refer To The Ex 2 (118.46 KiB) Viewed 62 times
Refer To The Ex 3 (33.36 KiB) Viewed 62 times
Refer To The Ex 4 (31.56 KiB) Viewed 62 times
Refer To The Ex 5 (24.13 KiB) Viewed 62 times
Refer To The Ex 6 (16.17 KiB) Viewed 62 times
