Refer to the exhibits. A user on the 192.168.1.0/24 network can successfully ping 192.168.3.1, but the administrator cannot ping 192.168.3.1 from the LA router.
Which set of configurations fixes the issue?
A.
B.
C.
D.

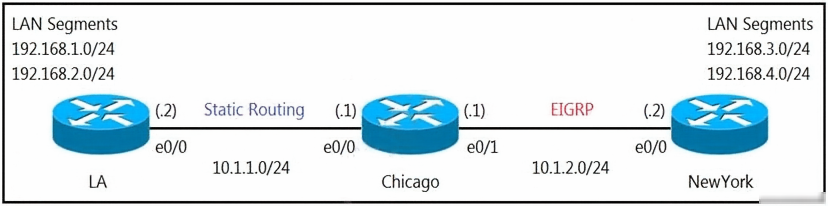

Refer To The Ex 1 (110.11 KiB) Viewed 55 times

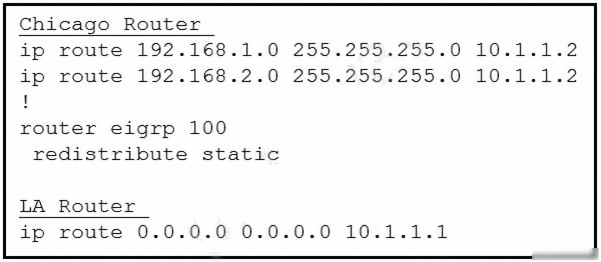

Refer To The Ex 2 (102.24 KiB) Viewed 55 times

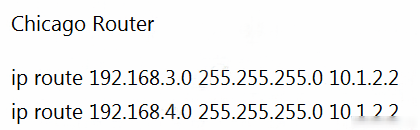

Refer To The Ex 3 (26.06 KiB) Viewed 55 times

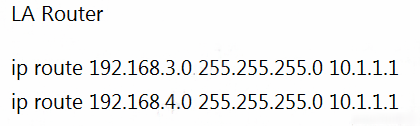

Refer To The Ex 4 (25 KiB) Viewed 55 times

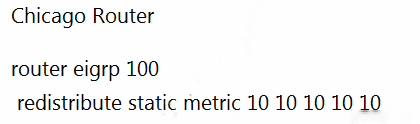

Refer To The Ex 5 (20.73 KiB) Viewed 55 times

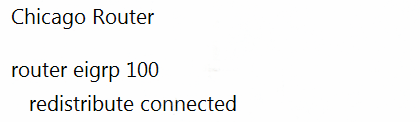

Refer To The Ex 6 (17.8 KiB) Viewed 55 times
