The device represented in the image is used for measuring the pressure of gases. One end of the U tube is connected to t

Post by answerhappygod »

The Device Represented In The Image Is Used For Measuring The Pressure Of Gases One End Of The U Tube Is Connected To T 1
The Device Represented In The Image Is Used For Measuring The Pressure Of Gases One End Of The U Tube Is Connected To T 1 (77.61 KiB) Viewed 24 times

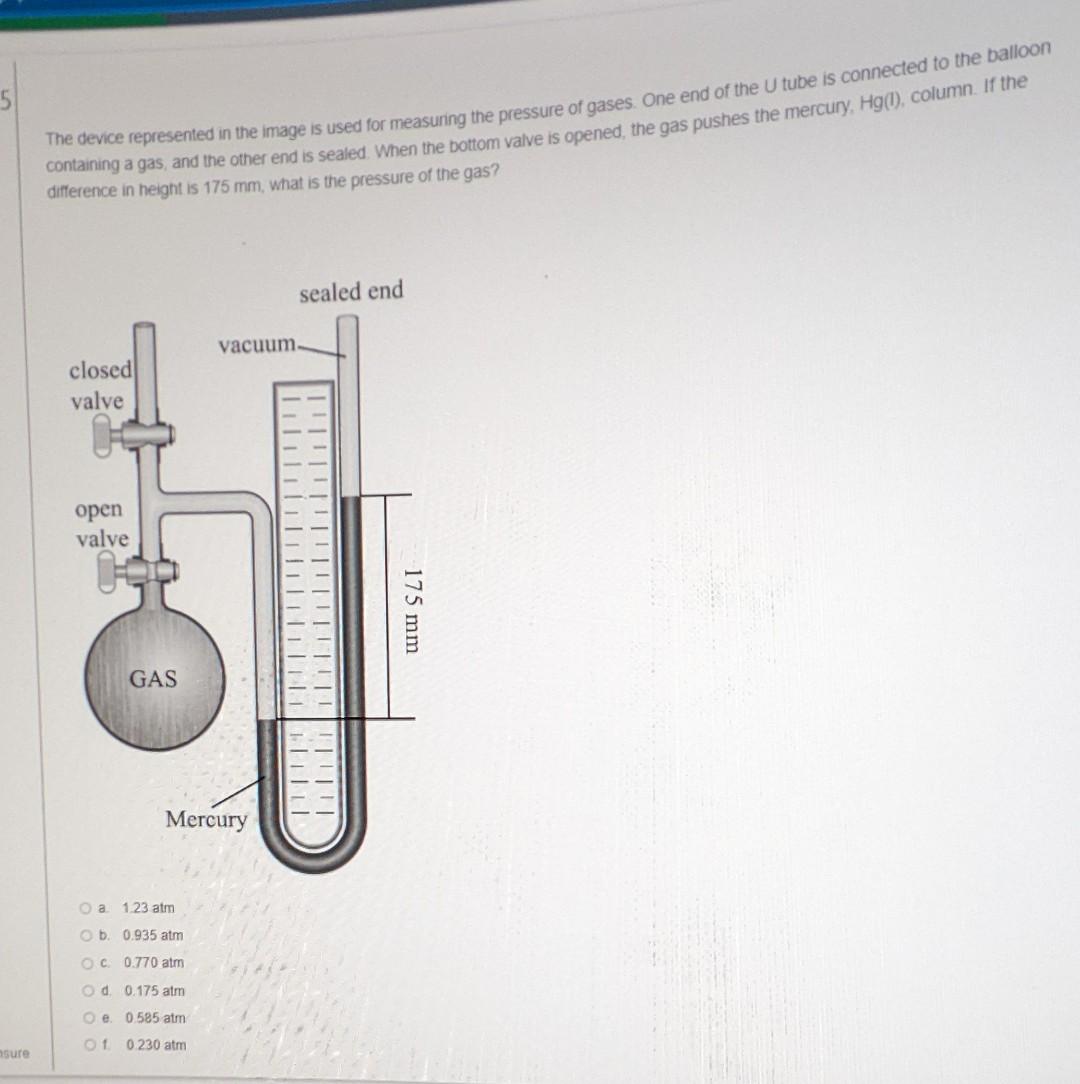

The device represented in the image is used for measuring the pressure of gases. One end of the U tube is connected to the balloon containing a gas, and the other end is sealed when the bottom valve is opened the gas pushes the mercury, Hg(1), column. If the difference in height is 175 mm, what is the pressure of the gas? sealed end vacuum closed valve open valve ןיןיןיןיןין 175 mm GAS Mercury a 1.23 atm b. 0.935 atm OC 0.770 atm od 0.175 atm e 0.585 atm 1 0 230 atm sure
