The junior network support staff provided the diagram as a recommended configuration for the first phase of a four-phase network expansion project. The entire network expansion will have over 1000 users on 14 network segments and has been allocated this IP address space.
✑ 192.168.1.1 through 192.168.5.255
✑ 192.168.100.1 through 192.168.100.255
What are three problems with this design? (Choose three.)

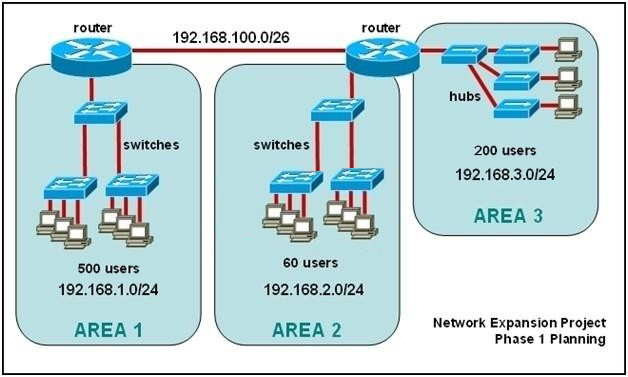

Refer To The Ex 1 (152.94 KiB) Viewed 49 times
A. The AREA 1 IP address space is inadequate for the number of users.
B. The AREA 3 IP address space is inadequate for the number of users.
C. AREA 2 could use a mask of /25 to conserve IP address space.
D. The network address space that is provided requires a single network-wide mask.
E. The router-to-router connection is wasting address space.
F. The broadcast domain in AREA 1 is too large for IP to function.
