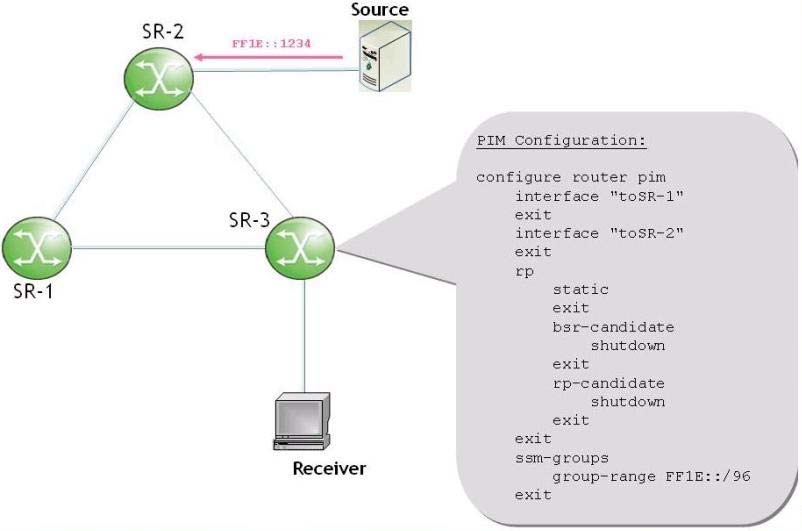

According to the PIM configuration on SR-3, can the receiver in the diagram receive multicast traffic from the source for group FF1E::1234? Assume all the other configurations are correct.
Refer To The Ex 1 (30.27 KiB) Viewed 50 times
A. Yes. The configuration of PIM is correct and the receiver should get traffic from the source
B. No. As the "rpf6-table" command is missing
C. No. As the rp configuration is missing. There should be at least one RP selection method from static, bsr or embedded-rp
D. No. As the "no IPv6-multicast-disable" command is missing
E. B, C and D
