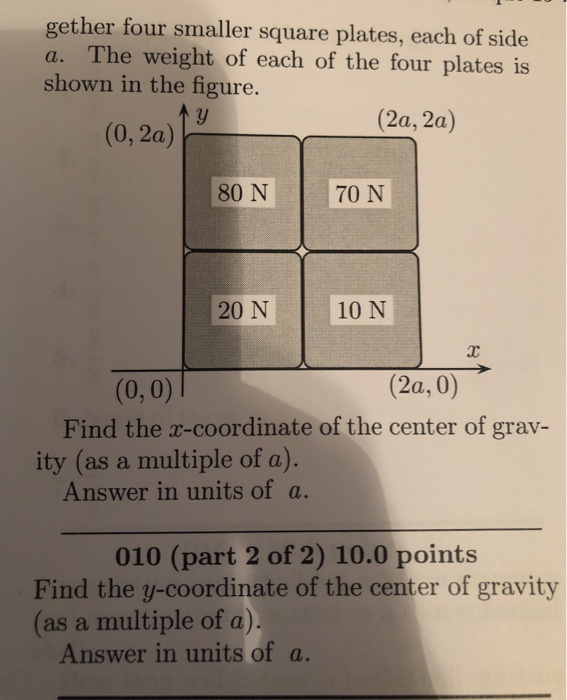

gether four smaller square plates, each of side a. The weight of each of the four plates is shown in the figure. (2a, 2a) (0,2a) 80 N 70 N 20 N 10 N (0,0) (2a, 0) Find the x-coordinate of the center of grav- ity (as a multiple of a). Answer in units of a. 010 (part 2 of 2) 10.0 points Find the y-coordinate of the center of gravity (as a multiple of a). Answer in units of a.
