In the figure, a uniform, upward electric field of magnitude 3.50x103 N/C has been set up between two horizontal plates

[answerhappygod]

In The Figure A Uniform Upward Electric Field Of Magnitude 3 50x103 N C Has Been Set Up Between Two Horizontal Plates 1 (974.78 KiB) Viewed 36 times

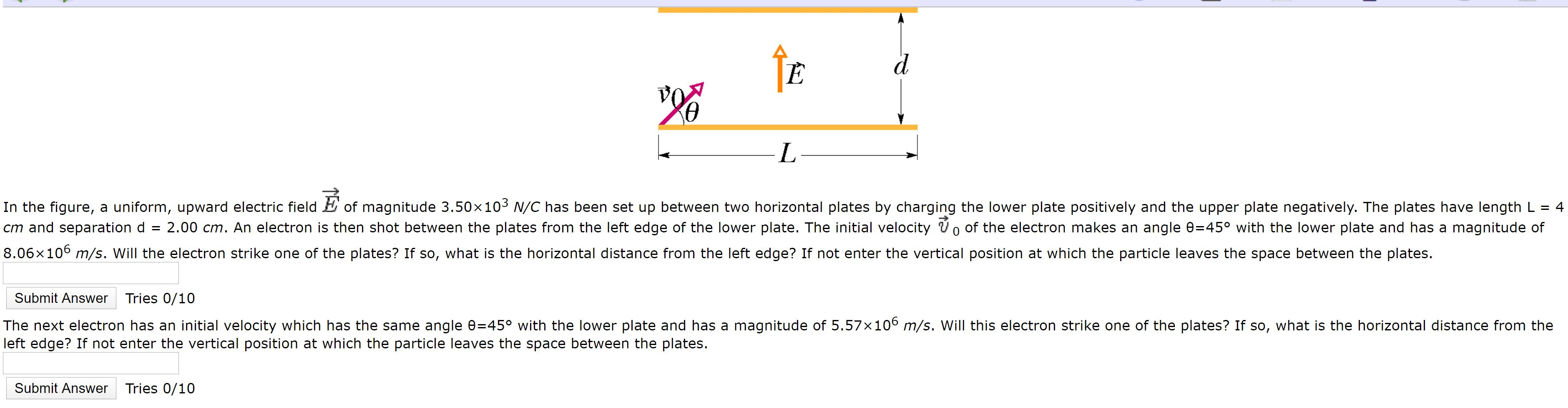

In the figure, a uniform, upward electric field of magnitude 3.50x103 N/C has been set up between two horizontal plates by charging the lower plate positively and the upper plate negatively. The plates have length L = 4 cm and separation d = 2.00 cm. An electron is then shot between the plates from the left edge of the lower plate. The initial velocity Úo of the electron makes an angle 0=45° with the lower plate and has a magnitude of 8.06x106 m/s. Will the electron strike one of the plates? If so, what is the horizontal distance from the left edge? If not enter the vertical position at which the particle leaves the space between the plates. Submit Answer Tries 0/10 The next electron has an initial velocity which has the same angle 0=45° with the lower plate and has a magnitude of 5.57x106 m/s. Will this electron strike one of the plates? If so, what is the horizontal distance from the left edge? If not enter the vertical position at which the particle leaves the space between the plates. Submit Answer Tries 0/10
