The equipotential surfaces around the end of wire are shown below. Each equipotential is 2m from the neighboring equipot

[answerhappygod]

The Equipotential Surfaces Around The End Of Wire Are Shown Below Each Equipotential Is 2m From The Neighboring Equipot 1 (127.46 KiB) Viewed 37 times

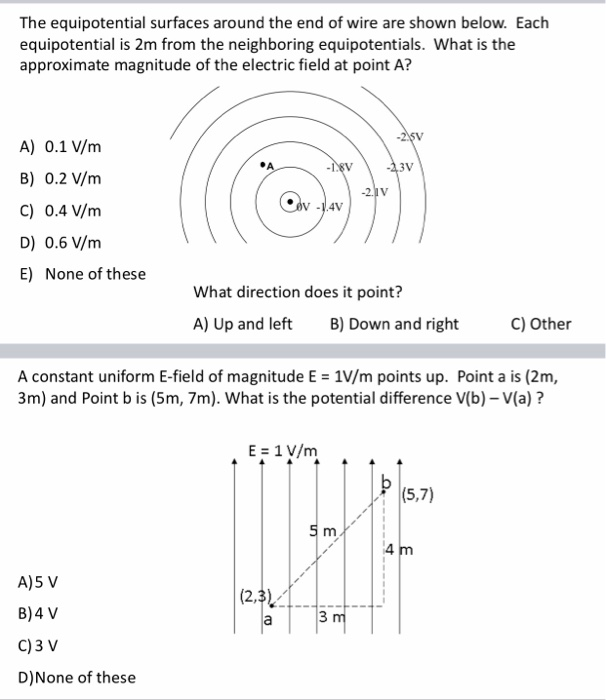

The equipotential surfaces around the end of wire are shown below. Each equipotential is 2m from the neighboring equipotentials. What is the approximate magnitude of the electric field at point A? -1.8V -23V A) 0.1 V/m B) 0.2 V/m C) 0.4 V/m D) 0.6 V/m 3 -2. V Av -1.4V E) None of these What direction does it point? A) Up and left B) Down and right C) Other A constant uniform E-field of magnitude E = 1V/m points up. Point a is (2m, 3m) and Point bis (5m, 7m). What is the potential difference V(b)-V(a)? E = 1 V/m 15,7) 5 m / (2,3) a 3 m A)5 V B)4 V C)3 V D) None of these
