3 Physics with Algebra - Trig II - PH 115 101 Hannah : 0 SHW 3 (CH 20.5 - CH 21.5) Problem 21.57 - Enhanced - with Feedb

[answerhappygod]

3 Physics With Algebra Trig Ii Ph 115 101 Hannah 0 Shw 3 Ch 20 5 Ch 21 5 Problem 21 57 Enhanced With Feedb 1 (623.47 KiB) Viewed 41 times

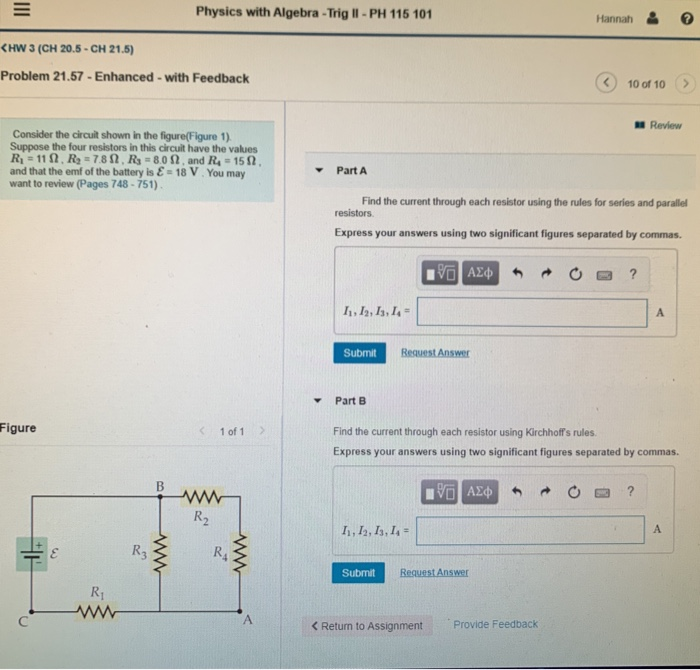

3 Physics with Algebra - Trig II - PH 115 101 Hannah : 0 SHW 3 (CH 20.5 - CH 21.5) Problem 21.57 - Enhanced - with Feedback 10 of 10 > Review Consider the circuit shown in the figure(Figure 1). Suppose the four resistors in this circuit have the values Ri= 11 R =78NR-8.00 and RA - 15 A and that the emf of the battery is E = 18 V. You may want to review (Pages 748 - 751) Part A Find the current through each resistor using the rules for series and parallel resistors Express your answers using two significant figures separated by commas. O AED O ? I, I, I, I, - Submit Request Answer Part B Figure 1 of 1 > Find the current through each resistor using Kirchhoffs rules. Express your answers using two significant figures separated by commas. 190 AXC ROO? 11, 12, 13, 14 - Submit Request Answer < Return to Assignment Provide Feedback
