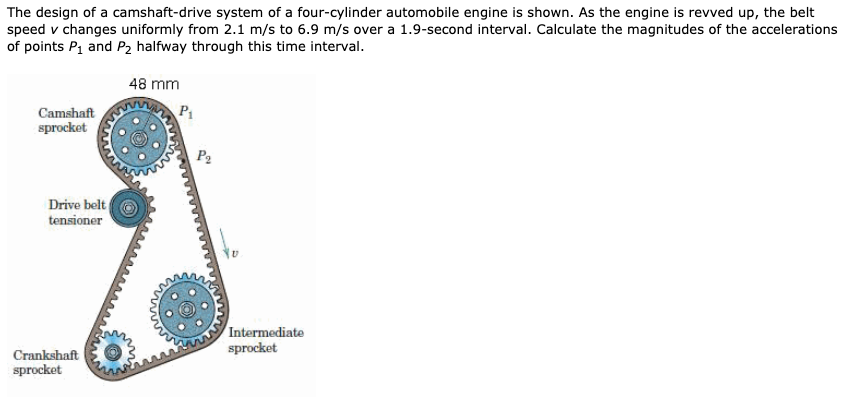

The design of a camshaft-drive system of a four-cylinder automobile engine is shown. As the engine is revved up, the belt speed v changes uniformly from 2.1 m/s to 6.9 m/s over a 1.9-second interval. Calculate the magnitudes of the accelerations of points P1 and P2 halfway through this time interval. 48 mm P Camshaft sprocket Drive belt tensioner Intermediate sprocket Crankshaft sprocket
Answers: ap1 = m/s2 apz = m/s2
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
