Question 111 poll) The connected bar BC is used to increase the lever arm of the crescent wrench as shown. If a clockwis

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Question 111 poll) The connected bar BC is used to increase the lever arm of the crescent wrench as shown. If a clockwis

Post by answerhappygod »

Question 111 Poll The Connected Bar Bc Is Used To Increase The Lever Arm Of The Crescent Wrench As Shown If A Clockwis 1
Question 111 Poll The Connected Bar Bc Is Used To Increase The Lever Arm Of The Crescent Wrench As Shown If A Clockwis 1 (78.69 KiB) Viewed 48 times

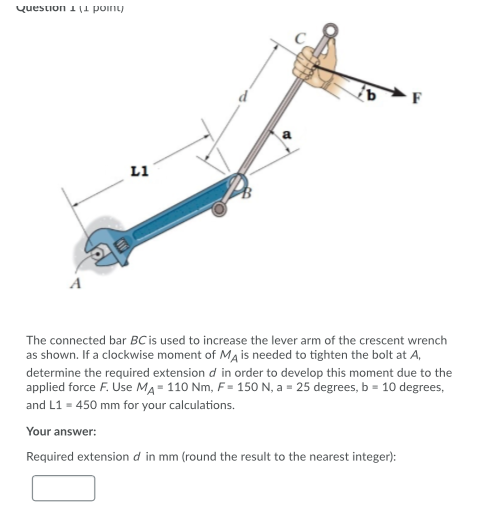

Question 111 poll) The connected bar BC is used to increase the lever arm of the crescent wrench as shown. If a clockwise moment of MA is needed to tighten the bolt at A determine the required extension d in order to develop this moment due to the applied force F. Use MA-110 Nm, F = 150 N, a = 25 degrees, b = 10 degrees, and L1 - 450 mm for your calculations. Your answer: Required extension d in mm (round the result to the nearest integer):
