4-6 Determine the currents 11, 12, and 13 shown below using Kirchhoff's Laws. 10 pts Let £1 = 10.0 V, €2 = 22.0 V, R1 =

Post by answerhappygod »

4 6 Determine The Currents 11 12 And 13 Shown Below Using Kirchhoff S Laws 10 Pts Let 1 10 0 V 2 22 0 V R1 1
4 6 Determine The Currents 11 12 And 13 Shown Below Using Kirchhoff S Laws 10 Pts Let 1 10 0 V 2 22 0 V R1 1 (64.04 KiB) Viewed 38 times

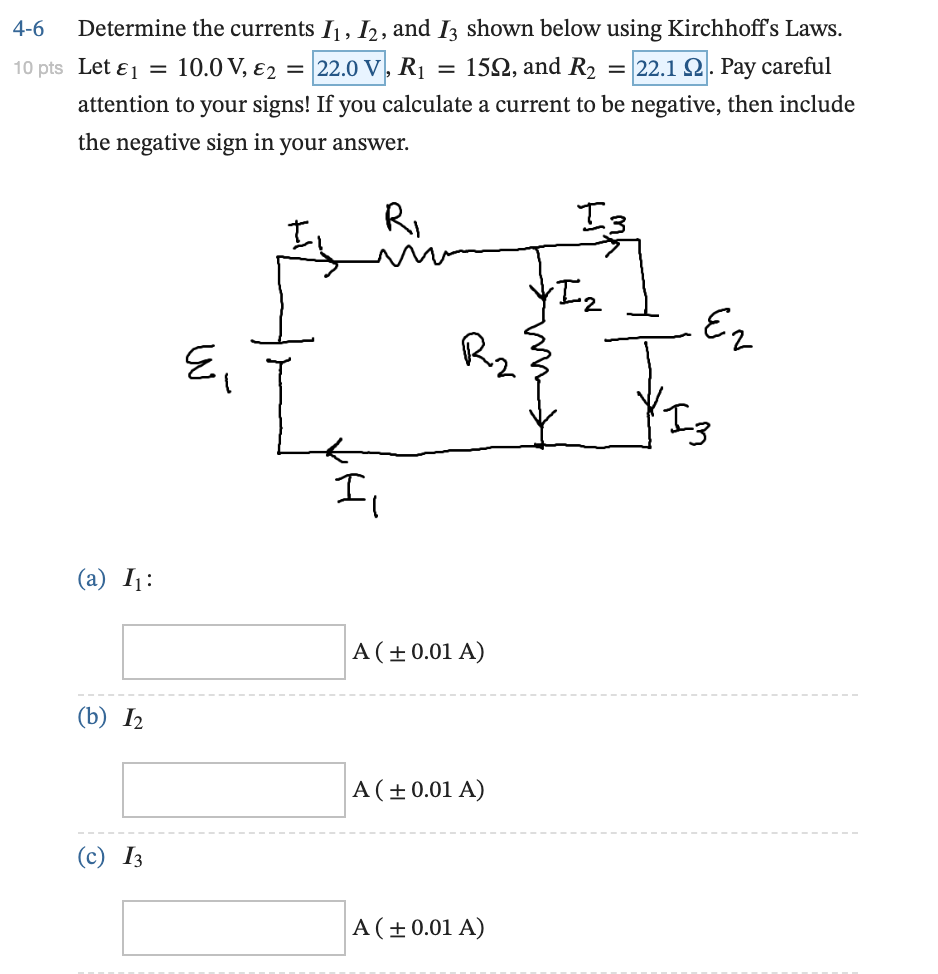

4-6 Determine the currents 11, 12, and 13 shown below using Kirchhoff's Laws. 10 pts Let £1 = 10.0 V, €2 = 22.0 V, R1 = 1522, and R2 = 22.1 2. Pay careful attention to your signs! If you calculate a current to be negative, then include the negative sign in your answer. En (a) 1: A( + 0.01 A) (b) 12 A( + 0.01 A) (c) 13 A( + 0.01 A)
