The following an exercise metric units are used. The 50-mm-diameter piston of the pneumatic cylinder of Figure 13-6 retr

Post by answerhappygod »

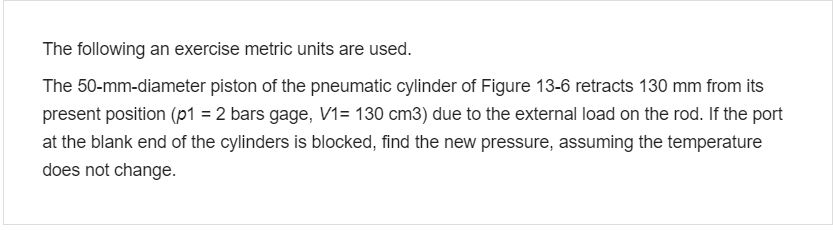

The Following An Exercise Metric Units Are Used The 50 Mm Diameter Piston Of The Pneumatic Cylinder Of Figure 13 6 Retr 1
The Following An Exercise Metric Units Are Used The 50 Mm Diameter Piston Of The Pneumatic Cylinder Of Figure 13 6 Retr 1 (56.52 KiB) Viewed 52 times
The following an exercise metric units are used. The 50-mm-diameter piston of the pneumatic cylinder of Figure 13-6 retracts 130 mm from its present position (p1 = 2 bars gage, V1= 130 cm3) due to the external load on the rod. If the port at the blank end of the cylinders is blocked, find the new pressure, assuming the temperature does not change.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
