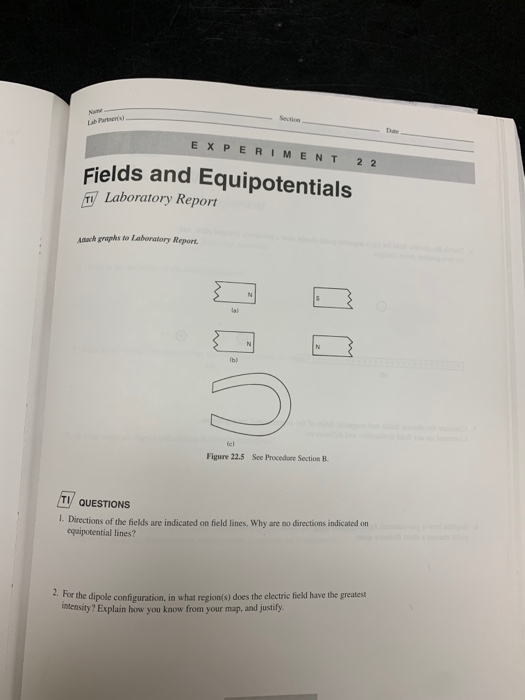

EXPERIMENT 22 Fields and Equipotentials TT Laboratory Report Anachgruples to Laboratory Report. Figure 22.5 See Procedure Section B. TI QUESTIONS 1. Directions of the fields are indicated on field lines. Why are no directions indicated on equipotential lines? . For the dipole configuration, in what region(s) does the electric field have the greatest intensity? Explain how you know from your map, and justily.

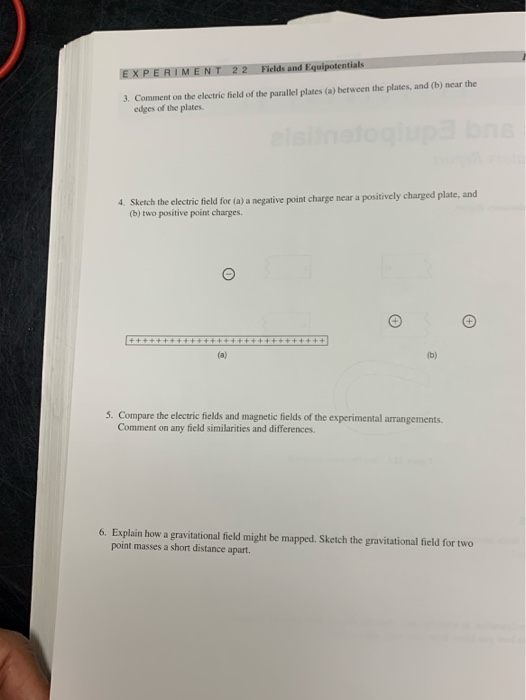

EXPERIMENT 2 2 Fields and Equipotentials 3. Comment on the electric field of the parallel plates (a) between the plates, and (b) near the edges of the plates 4. Sketch the electric field for (a) a negative point charge near a positively charged plate, and (b) two positive point charges. 5. Compare the cloctric fields and magnetic fields of the experimental arrangements. Comment on any field similarities and differences. 6. Explain how a gravitational field might be mapped. Sketch the gravitational field for two point masses a short distance apart.
