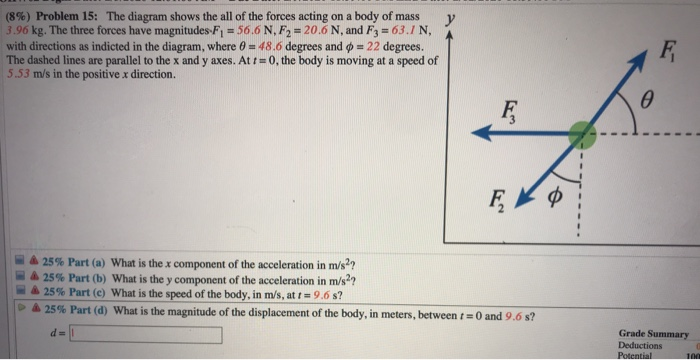

y (8%) Problem 15: The diagram shows the all of the forces acting on a body of mass 3.96 kg. The three forces have magnitudes F1 = 56.6 N, F2 = 20.6 N, and F3 = 63.7 N, with directions as indicted in the diagram, where 0 = 48.6 degrees and = 22 degrees. The dashed lines are parallel to the x and y axes. At t = 0, the body is moving at a speed of 5.53 m/s in the positive x direction. 25% Part (a) What is the x component of the acceleration in m/s?? 25% Part (b) What is the y component of the acceleration in m/s"? 25% Part (e) What is the speed of the body, in m/s, at != 9.6 s? 25% Part (d) What is the magnitude of the displacement of the body, in meters, between t= 0 and 9.6 s? Grade Summary Deductions Potential 100
