Consider the circuit in the drawing. (R1 = 3.0 12, R2 = 15, V1 = 27.0 V.) 12 10.0 V (a) Determine the magnitude of the c

Post by answerhappygod »

Consider The Circuit In The Drawing R1 3 0 12 R2 15 V1 27 0 V 12 10 0 V A Determine The Magnitude Of The C 1
Consider The Circuit In The Drawing R1 3 0 12 R2 15 V1 27 0 V 12 10 0 V A Determine The Magnitude Of The C 1 (71.57 KiB) Viewed 35 times

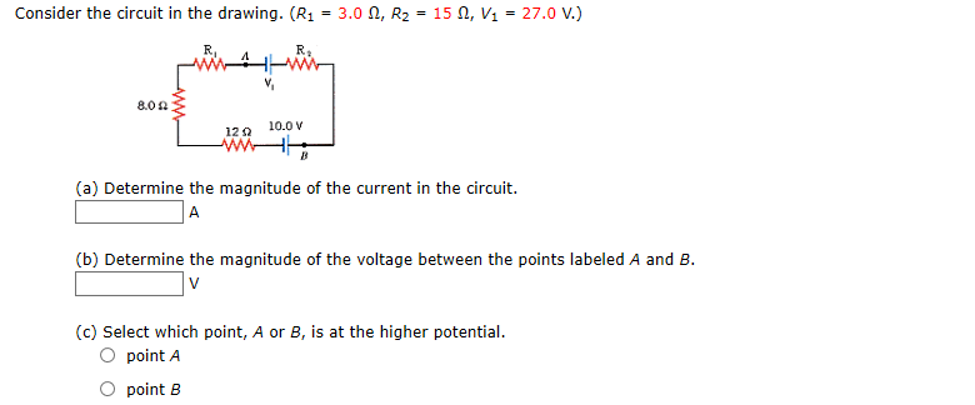

Consider the circuit in the drawing. (R1 = 3.0 12, R2 = 15, V1 = 27.0 V.) 12 10.0 V (a) Determine the magnitude of the current in the circuit. (b) Determine the magnitude of the voltage between the points labeled A and B. (c) Select which point, A or B, is at the higher potential. Opoint A Opoint B
