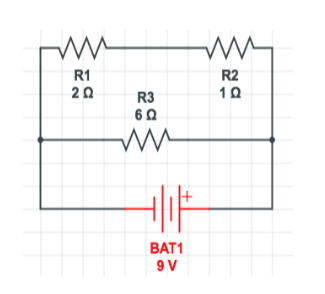

1a. What is the equivalent resistance of this circuit?
b. What is the total current in the circuit in Amps?
c. What can you do to increase the capacitance of acapacitor?
d. How does increasing the capacitance affect the charge on thecapacitor with a constant voltage?
e. How does increasing the capacitance affect the voltage acrossthe capacitor with a constant charge?
f. How does a larger capacitance affect the glowing lightbulb in terms of brightness and rate of dimming?
w R1 20 10 BAT1 9V
