Question 03 (a) The two forces acting on the handles of the pipe wrenches constitute a couple M. Express the couple as a

Post by answerhappygod »

Question 03 A The Two Forces Acting On The Handles Of The Pipe Wrenches Constitute A Couple M Express The Couple As A 1
Question 03 A The Two Forces Acting On The Handles Of The Pipe Wrenches Constitute A Couple M Express The Couple As A 1 (131.49 KiB) Viewed 42 times

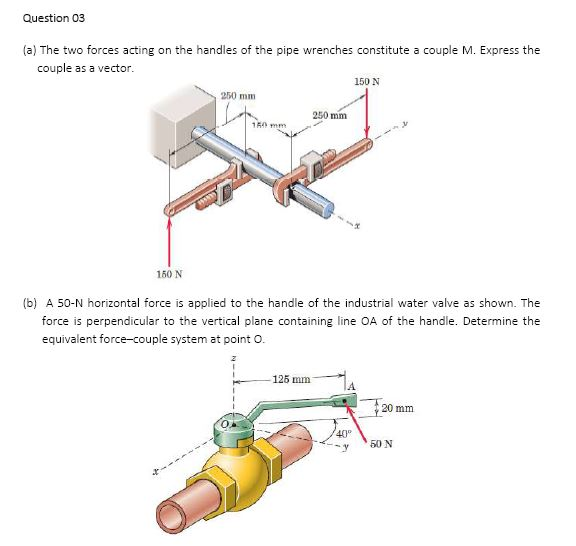

Question 03 (a) The two forces acting on the handles of the pipe wrenches constitute a couple M. Express the couple as a vector. 150 N 250 mm 250 mm 150 N (b) A 50-N horizontal force is applied to the handle of the industrial water valve as shown. The force is perpendicular to the vertical plane containing line OA of the handle. Determine the equivalent force-couple system at point O. - 125 mm 20 mm - 50 N
