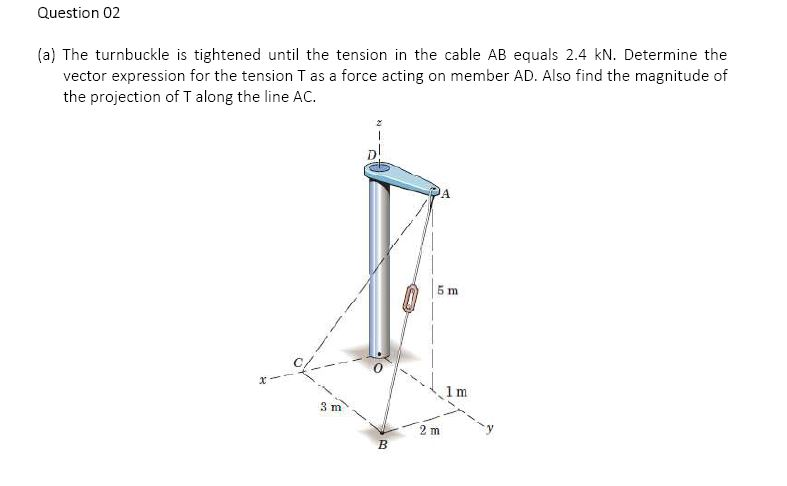

Question 02 (a) The turnbuckle is tightened until the tension in the cable AB equals 2.4 kN. Determine the vector expression for the tension T as a force acting on member AD. Also find the magnitude of the projection of T along the line AC. lm 3 m V2 my
(b) A force F is applied to the surface of the sphere as shown. The angles and o locate point P, and point M is the midpoint of ON. Express F in vector form, using the given x-, y, and z- coordinates. - - - +- 0 IM M
