One charged plane of conducting material is sandwiched by two uncharged dielectric planes as in figure. Both dielectrics

[answerhappygod]

One Charged Plane Of Conducting Material Is Sandwiched By Two Uncharged Dielectric Planes As In Figure Both Dielectrics 1 (143 KiB) Viewed 38 times

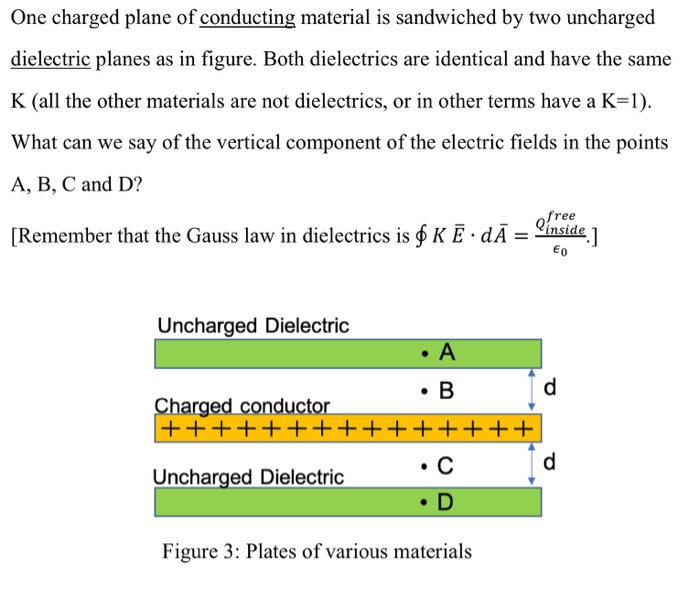

One charged plane of conducting material is sandwiched by two uncharged dielectric planes as in figure. Both dielectrics are identical and have the same K (all the other materials are not dielectrics, or in other terms have a K=1). What can we say of the vertical component of the electric fields in the points A, B, C and D? - free [Remember that the Gauss law in dielectrics is $ KĒ dĀ = linside 1 Uncharged Dielectric •A •B dd Charged conductor + + + + + + + + + + + + + + + Uncharged Dielectric Figure 3: Plates of various materials
