• Response of an RC Circuit R WWW. + The capacitor in the circuit shown to the right starts with no charge on its plates

Post by answerhappygod »

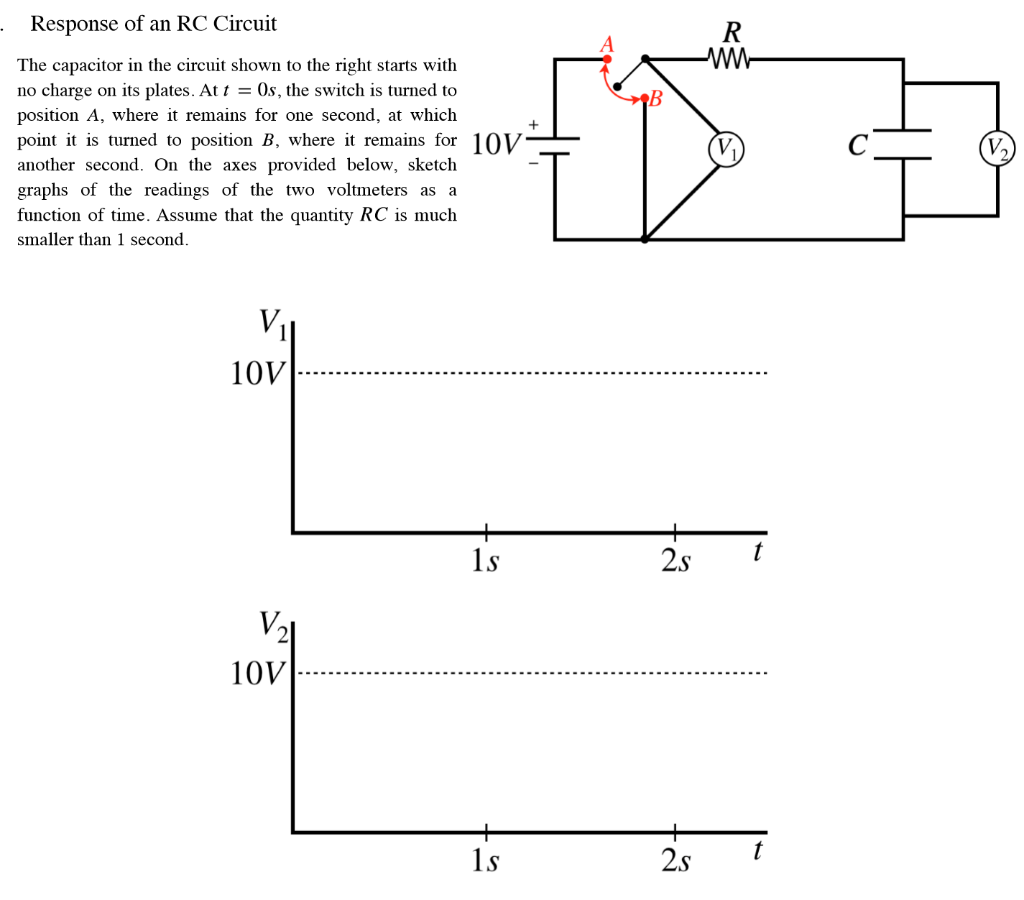

Response Of An Rc Circuit R Www The Capacitor In The Circuit Shown To The Right Starts With No Charge On Its Plates 1
Response Of An Rc Circuit R Www The Capacitor In The Circuit Shown To The Right Starts With No Charge On Its Plates 1 (82.34 KiB) Viewed 33 times
• Response of an RC Circuit R WWW. + The capacitor in the circuit shown to the right starts with no charge on its plates. At t = 0s, the switch is turned to position A, where it remains for one second, at which point it is turned to position B, where it remains for another second. On the axes provided below, sketch graphs of the readings of the two voltmeters as a function of time. Assume that the quantity RC is much smaller than 1 second. 1 10V is 25 1 10V
