D a D. w Exercise 3: 1) By using the 2nd model for diodes D1 and D2 (V) = 0.7 V) in the following circuit: a) Sketch the

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

D a D. w Exercise 3: 1) By using the 2nd model for diodes D1 and D2 (V) = 0.7 V) in the following circuit: a) Sketch the

Post by answerhappygod »

D A D W Exercise 3 1 By Using The 2nd Model For Diodes D1 And D2 V 0 7 V In The Following Circuit A Sketch The 1
D A D W Exercise 3 1 By Using The 2nd Model For Diodes D1 And D2 V 0 7 V In The Following Circuit A Sketch The 1 (13.95 KiB) Viewed 20 times

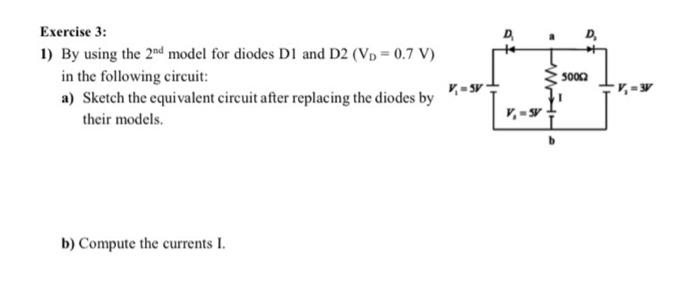

D a D. w Exercise 3: 1) By using the 2nd model for diodes D1 and D2 (V) = 0.7 V) in the following circuit: a) Sketch the equivalent circuit after replacing the diodes by their models. 5000 V- b) Compute the currents I.
