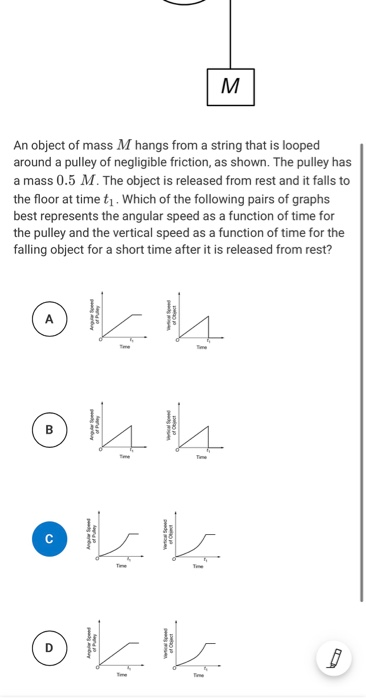

M An object of mass M hangs from a string that is looped around a pulley of negligible friction, as shown. The pulley has a mass 0.5 M. The object is released from rest and it falls to the floor at time tı. Which of the following pairs of graphs best represents the angular speed as a function of time for the pulley and the vertical speed as a function of time for the falling object for a short time after it is released from rest? klih O HANA Olle ohko

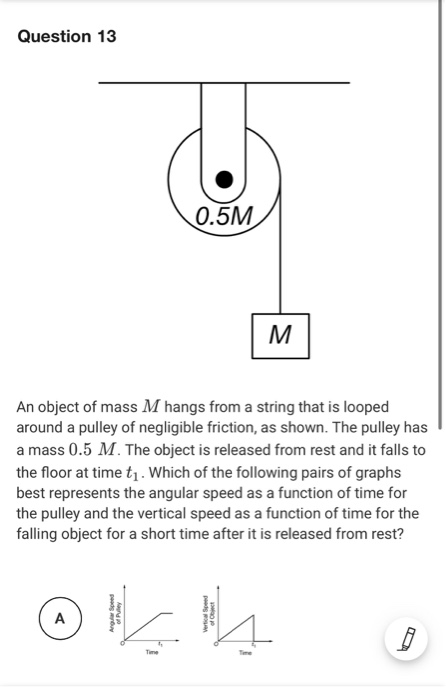

Question 13 0.5M M An object of mass M hangs from a string that is looped around a pulley of negligible friction, as shown. The pulley has a mass 0.5 M. The object is released from rest and it falls to the floor at time tj. Which of the following pairs of graphs best represents the angular speed as a function of time for the pulley and the vertical speed as a function of time for the falling object for a short time after it is released from rest? - ② L 4
