Two identical capacitors of capacitance Care connected to a power supply providing an electric potential V. They are con

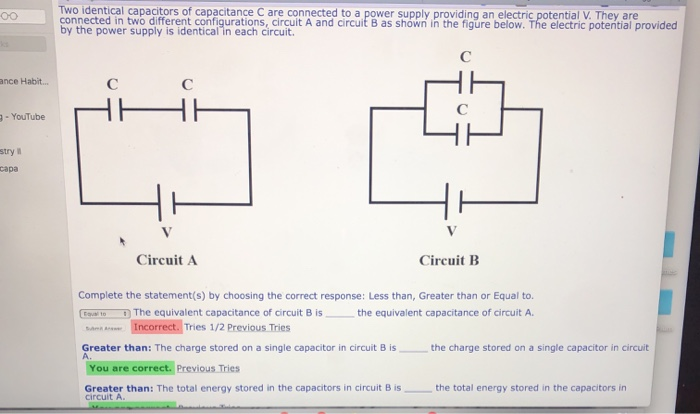

Two identical capacitors of capacitance Care connected to a power supply providing an electric potential V. They are connected in two different configurations, circuit A and circuit B as shown in the figure below. The electric potential provided by the power supply is identical in each circuit. ance Habit... - YouTube - stry capa Circuit A Circuit B Complete the statement(s) by choosing the correct response: Less than, Greater than or Equal to. Del to the equivalent capacitance of circuit B is the equivalent capacitance of circuit A. Incorrect. Tries 1/2 Previous Tries Greater than: The charge stored on a single capacitor in circuit B is the charge stored on a single capacitor in circuit You are correct. Previous Tries Greater than: The total energy stored in the capacitors in circuit B is the total energy stored in the capacitors in circuit A
