14. - 10 points SerCP11 16.6.OP.039. My Notes ASK Your Tea The circuit in the figure below contains a 9.00 V battery and

[answerhappygod]

14 10 Points Sercp11 16 6 Op 039 My Notes Ask Your Tea The Circuit In The Figure Below Contains A 9 00 V Battery And 1 (459.76 KiB) Viewed 41 times

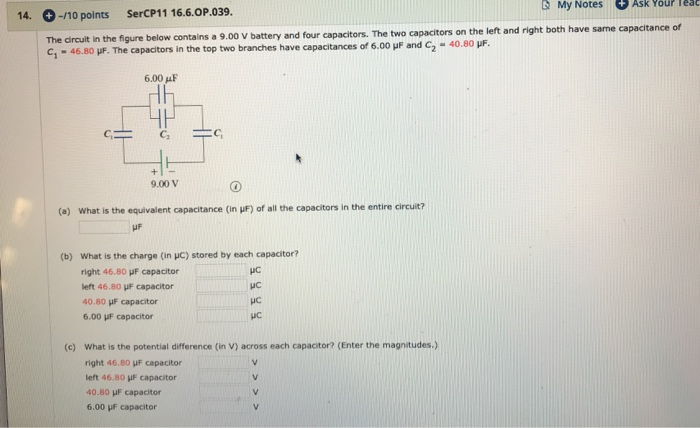

14. - 10 points SerCP11 16.6.OP.039. My Notes ASK Your Tea The circuit in the figure below contains a 9.00 V battery and four capacitors. The two capacitors on the left and right both have same capacitance of C-46.80 PF. The capacitors in the top two branches have capacitances of 6.00 uF and C - 40.80 PF. 6.00 F 9.00 V (a) What is the equivalent capacitance (in pF) of all the capacitors in the entire circuit? (b) What is the charge (in UC) stored by each capacitor? right 46.80 PF capacitor left 46.80 WF capacitor 40.80 F capacitor 6.00 pF capacitor (c) What is the potential difference in V) across each capacitor? (Enter the magnitudes.) right 46.80 uF capacitor left 46.80 PF capacitor 40.80 y capacitor 6.00 F capacitor
