- Task 1 Analysis Of A Beam For Deflection 30 Marks Structural Steel Offers A Number Of Benefits In Building Design Inc 1 (84.48 KiB) Viewed 30 times
- Task 1 Analysis Of A Beam For Deflection 30 Marks Structural Steel Offers A Number Of Benefits In Building Design Inc 2 (34.8 KiB) Viewed 30 times
Please answer all questions ASAP

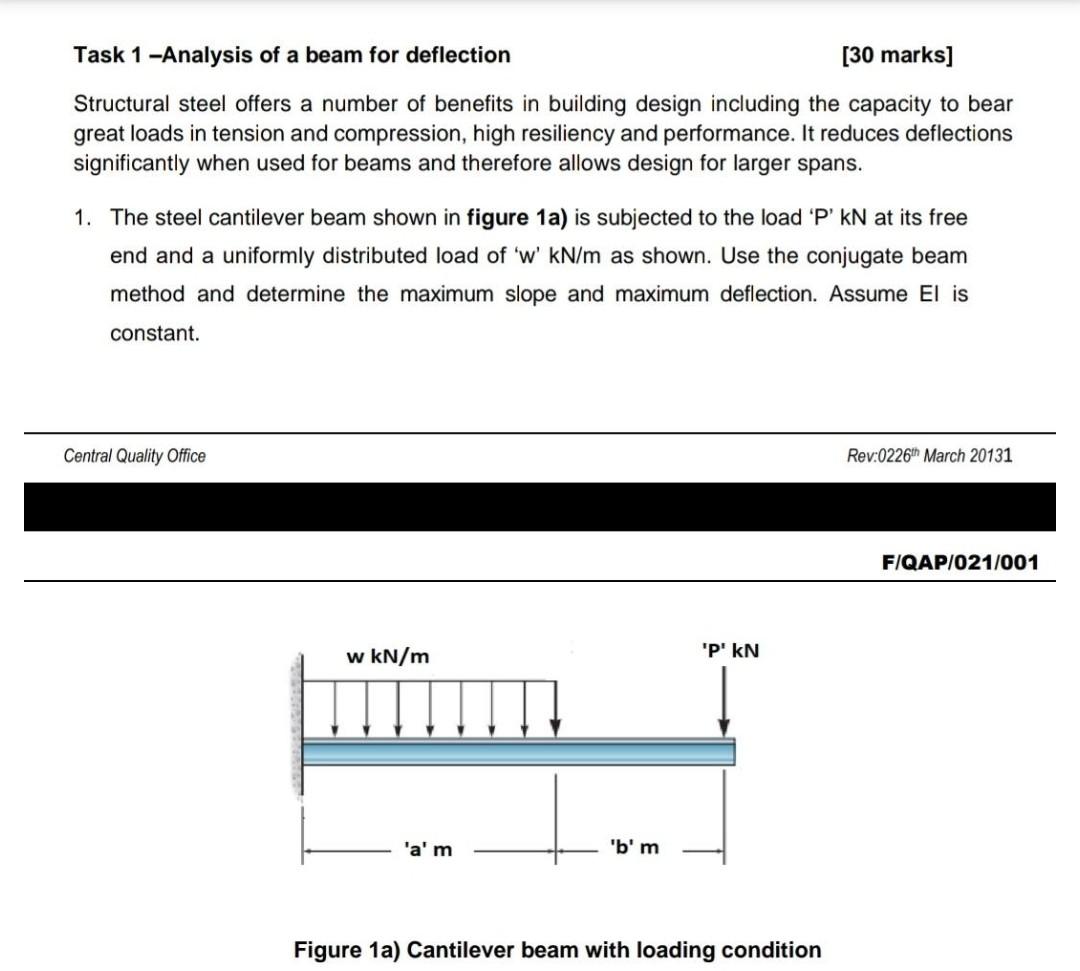

Task 1 -Analysis of a beam for deflection [30 marks] Structural steel offers a number of benefits in building design including the capacity to bear great loads in tension and compression, high resiliency and performance. It reduces deflections significantly when used for beams and therefore allows design for larger spans. 1. The steel cantilever beam shown in figure 1a) is subjected to the load 'P' kN at its free end and a uniformly distributed load of 'w' kN/m as shown. Use the conjugate beam method and determine the maximum slope and maximum deflection. Assume El is constant. Central Quality Office Rev:0226th March 20131 F/QAP/021/001 w kN/m 'P' KN 'a' m 'b' m Figure 1a) Cantilever beam with loading condition

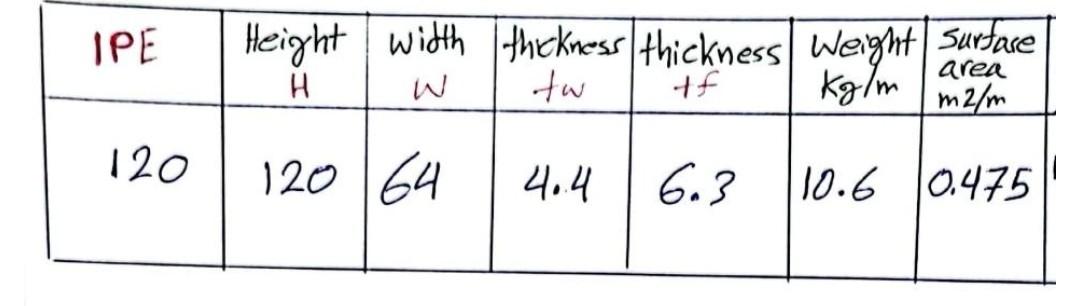

IPE H W tf Height with thickness thickness Weight Surface tw Kg/m m2/m 120 64 4.46.3 10.6 0475 120
