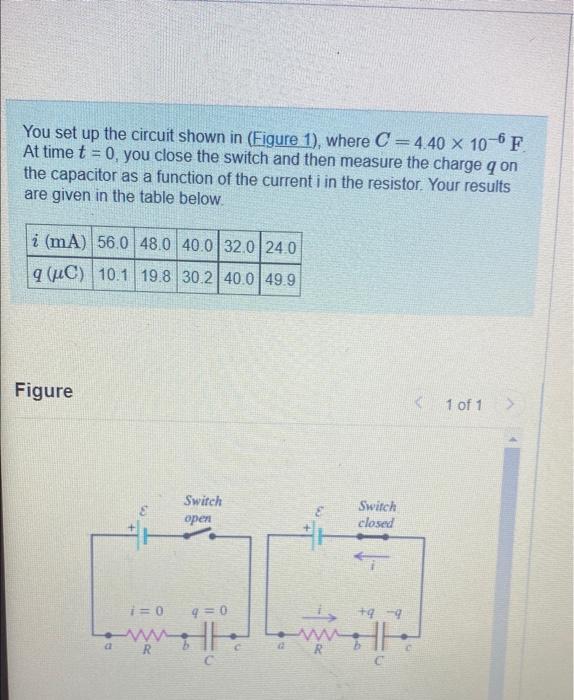

You set up the circuit shown in (Figure 1), where C =4.40 10-6F. At time t = 0, you close the switch and then measure the charge qon the capacitor as a function of the current i in the resistor. Your results are given in the table below. i (mA) 56.0 48.0 40.0 32.0 24.0 9 (UC) 10.1 19.8 30.2 40.0 49.9 Figure 1 1 of 1 Switch open Switch closed T=0 4 = 0 5+q-2 a R

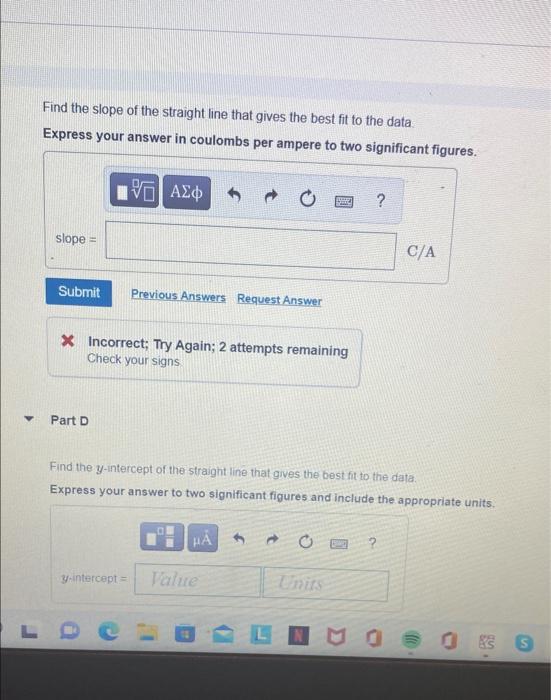

Find the slope of the straight line that gives the best fit to the data Express your answer in coulombs per ampere to two significant figures. VALD ? slope = C/A Submit Previous Answers Request Answer X Incorrect; Try Again; 2 attempts remaining Check your signs Part D Find the y-intercept of the straight line that gives the best fit to the data Express your answer to two significant figures and include the appropriate units. НА 2 y intercept = Talne Unir i MOSS

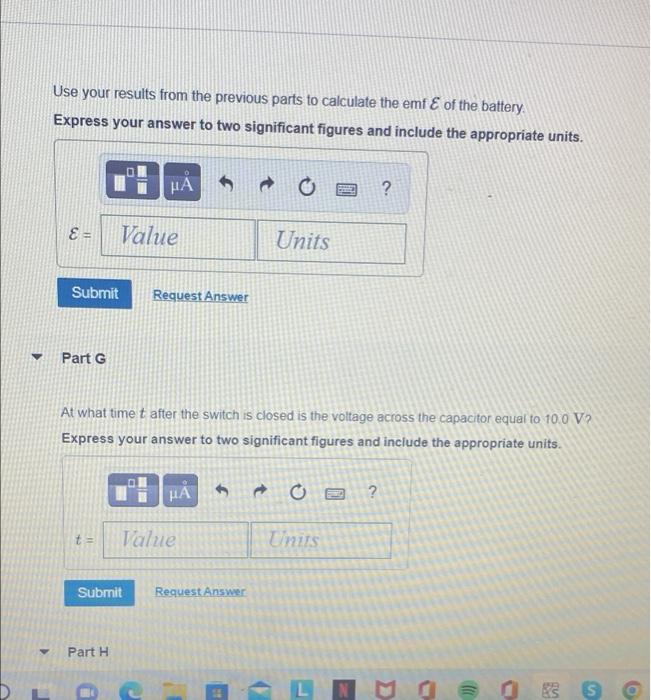

Use your results from the previous parts to calculate the emf of the battery Express your answer to two significant figures and include the appropriate units. TH μΑ ? E = Value Units Submit Request Answer Part G At what time t after the switch is closed is the voltage across the capacitor equal to 100 V Express your answer to two significant figures and include the appropriate units. НА ? t = Value Units Submit Request Answer Part H NM (653 a 1
60 SO 40 9 (C) 30 20 10 0.0 10.0 200 0 400 50.0 600 300 i (mA)
You set up the circuit shown in (Figure 1), where C =4.40 10-6F. At time t = 0, you close the switch and then measure th
-
