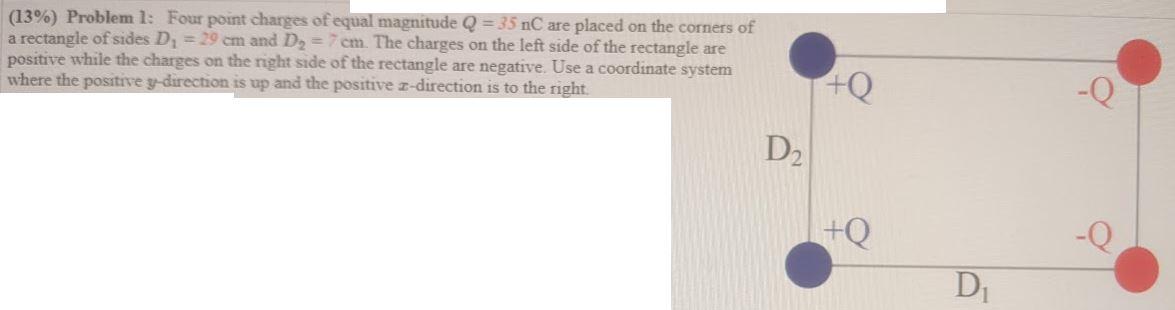

(13%) Problem 1: Four point charges of equal magnitude Q = 35 nC are placed on the corners of a rectangle of sides Di = 29 cm and D2 = 7cm. The charges on the left side of the rectangle are positive while the charges on the right side of the rectangle are negative. Use a coordinate system where the positive y-direction is up and the positive z-direction is to the right +Q -Q D2 D
PÅ 20% Part (a) Which of the following represents a free-body diagram for the charge on the lower left hand corner of the rectangle? L Submit Bech ve Hints: Feedback: A 20% Part (b) Calculate the horizontal component of the net force, in newtons, on the charge which lies at the lower left corner of the rectangle 4 20% Part (c) Calculate the vertical component of the net force, in newtons, on the charge which lies at the lower left corner of the rectangle. A 20% Part (d) Calculate the magnitude of the net force, in newtons, on the charge located at the lower left corner of the rectangle. - A 20% Part (e) Calculate the angle of the net force vector relative to the tx axis, with the positive direction being counterclockwise from the positive horizontal axis. Enter an angle between -180° and 180°
