In the figure below, the current in the long, straight wire is I, = 7.80 A and the wire lies in the plane of the rectang

[answerhappygod]

In The Figure Below The Current In The Long Straight Wire Is I 7 80 A And The Wire Lies In The Plane Of The Rectang 1 (16.73 KiB) Viewed 43 times

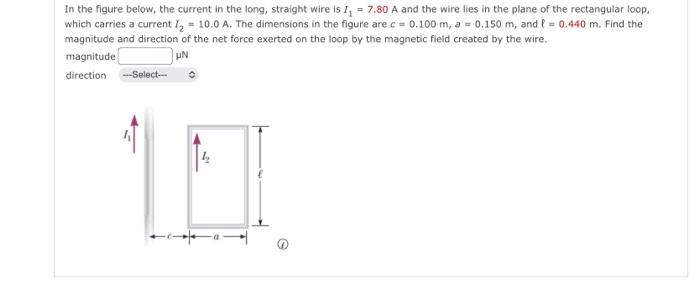

In the figure below, the current in the long, straight wire is I, = 7.80 A and the wire lies in the plane of the rectangular loop, which carries a current 12 = 10.0 A. The dimensions in the figure are c = 0.100 m, a = 0.150 m, and l = 0.440 m. Find the magnitude and direction of the net force exerted on the loop by the magnetic field created by the wire. magnitude direction --Select-- μΝ 11
