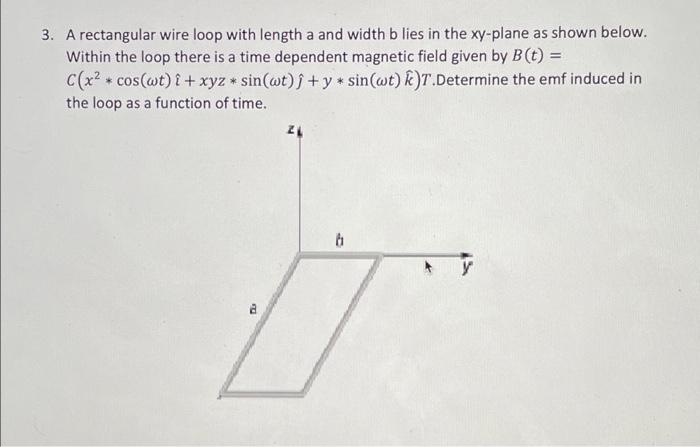

3. A rectangular wire loop with length a and width b lies in the xy-plane as shown below. Within the loop there is a time dependent magnetic field given by B(t) = C(xcos(wt) { +xyz + sin(wt)ſ +y* sin(wt) k)T.Determine the emf induced in the loop as a function of time. * ZE y

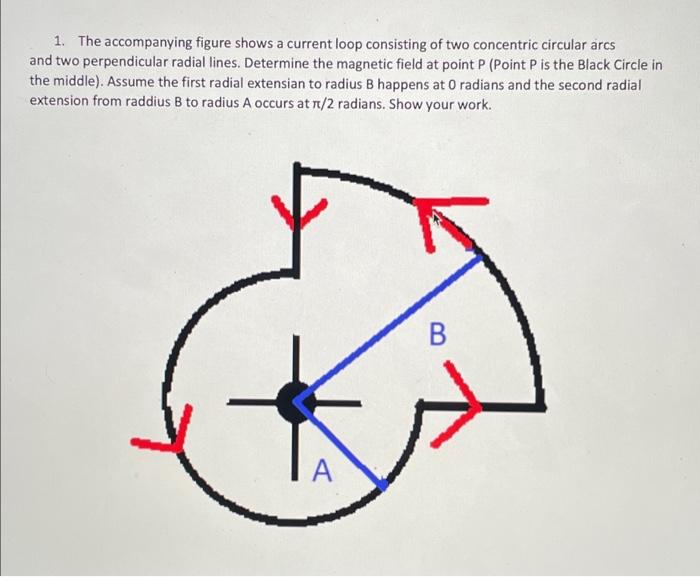

1. The accompanying figure shows a current loop consisting of two concentric circular arcs and two perpendicular radial lines. Determine the magnetic field at point P (Point P is the Black Circle in the middle). Assume the first radial extensian to radius B happens at O radians and the second radial extension from raddius B to radius A occurs at rt/2 radians. Show your work. B A
