figure above shows a box fitted with a pulley. The wall has one pulley fixed. A cord is pulled with a tension, T, is att

Post by answerhappygod »

Figure Above Shows A Box Fitted With A Pulley The Wall Has One Pulley Fixed A Cord Is Pulled With A Tension T Is Att 1
Figure Above Shows A Box Fitted With A Pulley The Wall Has One Pulley Fixed A Cord Is Pulled With A Tension T Is Att 1 (72.63 KiB) Viewed 41 times

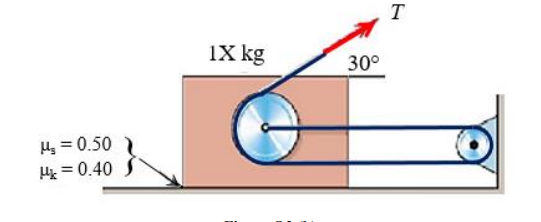

figure above shows a box fitted with a pulley. The wall has one pulley fixed. A cord is pulled with a tension, T, is attached to the centre of the pulley of the box and wrapped around the pulleys. Given T = 31 N and the mass of the block, m = 11 kg.
(i) Draw the free body diagram and kinetic diagram.
(ii) Determine the maximum frictional force.
(iii) Determine the total force in the x-direction, Fx, due to the tension on the cord and due to the pulleys.
(iv) Explain if the box will move or not.
(v) Determine the acceleration of the box.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
