For the circuit shown in (Figure 1), assume that E=15.0 V,r=1.10Ω, and R=2.25Ω. Figure 1 of 1 Part A If a voltmeter is c

Post by answerhappygod »

1
1 (77.8 KiB) Viewed 38 times

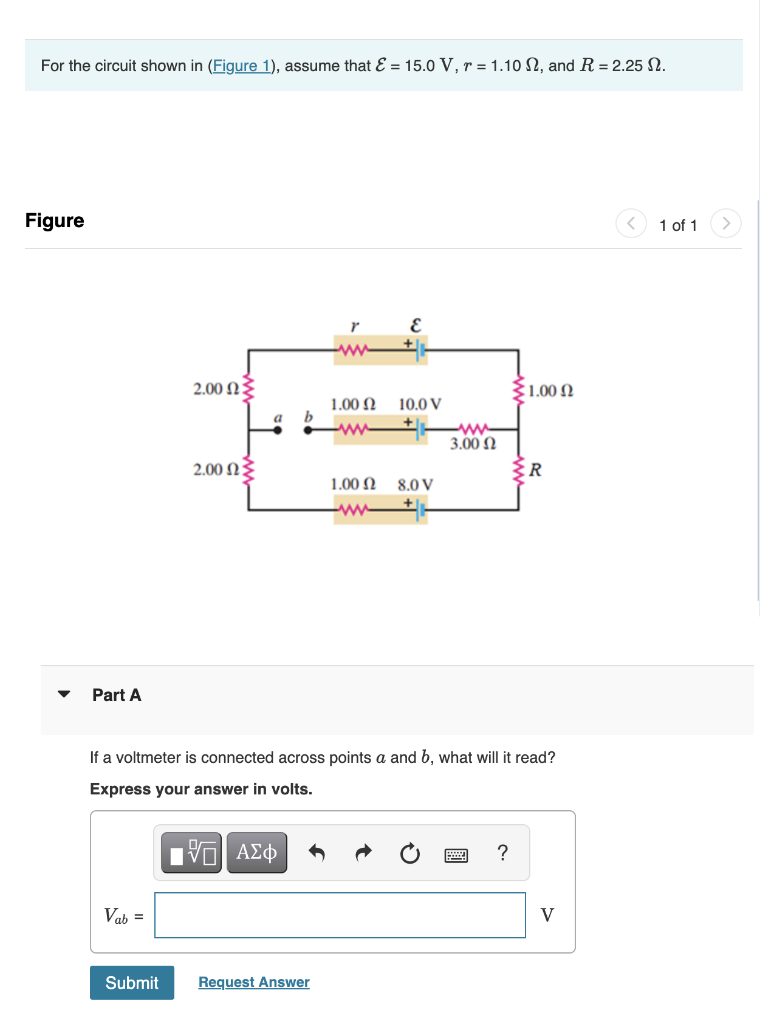

For the circuit shown in (Figure 1), assume that E=15.0 V,r=1.10Ω, and R=2.25Ω. Figure 1 of 1 Part A If a voltmeter is connected across points a and b, what will it read? Express your answer in volts.
