The schematic for part of the circuitry that makes up a T-800's memory unit is shown below. This particular part of the

Post by answerhappygod »

The Schematic For Part Of The Circuitry That Makes Up A T 800 S Memory Unit Is Shown Below This Particular Part Of The 1
The Schematic For Part Of The Circuitry That Makes Up A T 800 S Memory Unit Is Shown Below This Particular Part Of The 1 (44.46 KiB) Viewed 42 times

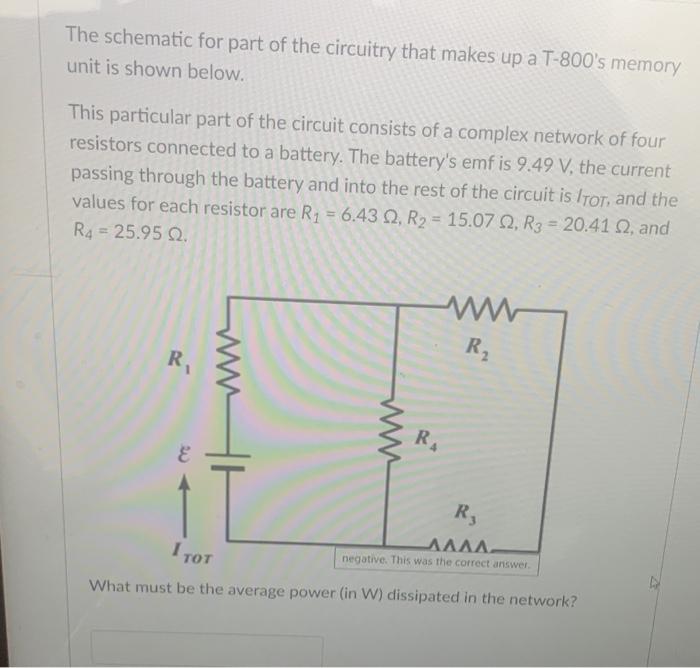

The schematic for part of the circuitry that makes up a T-800's memory unit is shown below. This particular part of the circuit consists of a complex network of four resistors connected to a battery. The battery's emf is 9.49 V, the current passing through the battery and into the rest of the circuit is ITOT​, and the values for each resistor are R1​=6.43Ω,R2​=15.07Ω,R3​=20.41Ω, and R4​=25.95Ω What must be the average power (in W) dissipated in the network?
