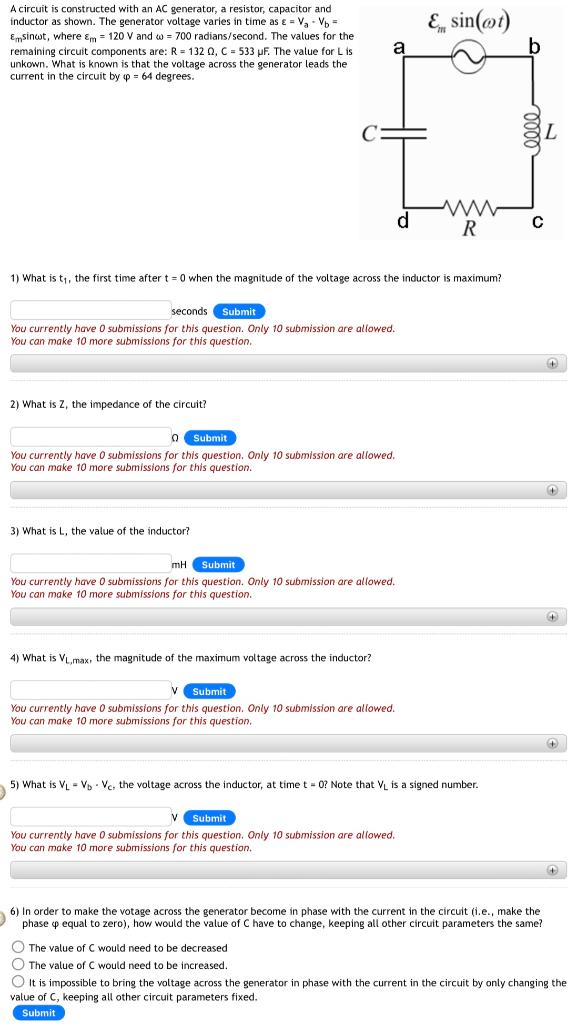

- A Circuit Is Constructed With An Ac Generator A Resistor Capacitor And Inductor As Shown The Generator Voltage Varies 1 (85.57 KiB) Viewed 43 times
A circuit is constructed with an AC generator, a resistor, capacitor and inductor as shown. The generator voltage varies in time as ε=Va=Vb= εm sinit, where εm=120 V and ω=700 radians/second. The values for the remaining circuit components are: R=132Ω,C=533μF. The value for L is unkown. What is known is that the voltage across the generator leads the current in the circuit by φ=64 degrees. 1) What is t1, the first time after t=0 when the magnitude of the voltage across the inductor is maximum? seconds You currently have 0 submissions for this question. Only 10 submission are allowed. You can make 10 more submissions for this question. 2) What is Z, the impedance of the circuit? 0 You currently have 0 submissions for this question. Only 10 submission are allowed. You can make 10 more submissions for this question. 3) What is L, the value of the inductor? You currently have 0 submissions for this question. Only 10 submission are allowed. You can make 10 more submissions for this question. 4) What is VL,max, the magnitude of the maximum voltage across the inductor? v You currently have 0 submissions for this question. Only 10 submission are allowed. You can make 10 more submissions for this question. 5) What is VL=Vb−VC, the voltage across the inductor, at time t=0 ? Note that VL is a signed number. V You currently have 0 submissions for this question. Only 10 submission are allowed. You can make 10 more submissions for this question. 6) In order to make the votage across the generator become in phase with the current in the circuit (i.e., make the phase φ equal to zero), how would the value of C have to change, keeping all other circuit parameters the same? The value of C would need to be decreased The value of C would need to be increased. It is impossible to bring the voltage across the generator in phase with the current in the circuit by only changing the value of C, keeping all other circuit parameters fixed.
