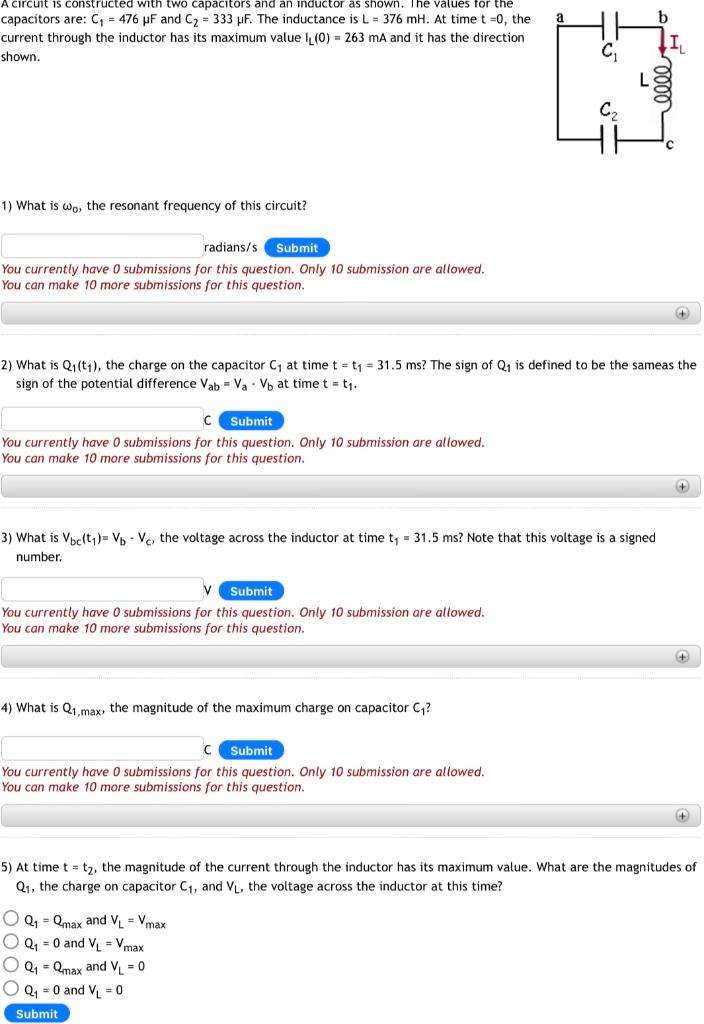

1) What is ω0, the resonant frequency of this circuit? radians/s You currently have 0 submissions for this question. Only 10 submission are allowed. You can make 10 more submissions for this question. 2) What is Q1(t1), the charge on the capacitor C1 at time t=t1=31.5 ms ? The sign of Q1 is defined to be the sameas the sign of the potential difference Vab=Va⋅Vb at time t=t1. C You currently have 0 submissions for this question. Only 10 submission are allowed. You can make 10 more submissions for this question. 3) What is Vbc(t1)=Vb−Vc, the voltage across the inductor at time t1=31.5 ms ? Note that this voltage is a signed number. You currently have 0 submissions for this question. Only 10 submission are allowed. You can make 10 more submissions for this question. 4) What is Q1,max, the magnitude of the maximum charge on capacitor C1 ? ε You currently have 0 submissions for this question. Only 10 submission are allowed. You can make 10 more submissions for this question. 5) At time t=t2, the magnitude of the current through the inductor has its maximum value. What are the magnitudes of Q1, the charge on capacitor C1, and VL, the voltage across the inductor at this time? Q1=Qmax and VL=VmaxQ1=0 and VL=VmaxQ1=Qmax and VL=0Q1=0 and VL=0
