(7\%) Problem 2: Consider the circuit in the figure, with the current directions defined as shown. There are four resist
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
(7\%) Problem 2: Consider the circuit in the figure, with the current directions defined as shown. There are four resist

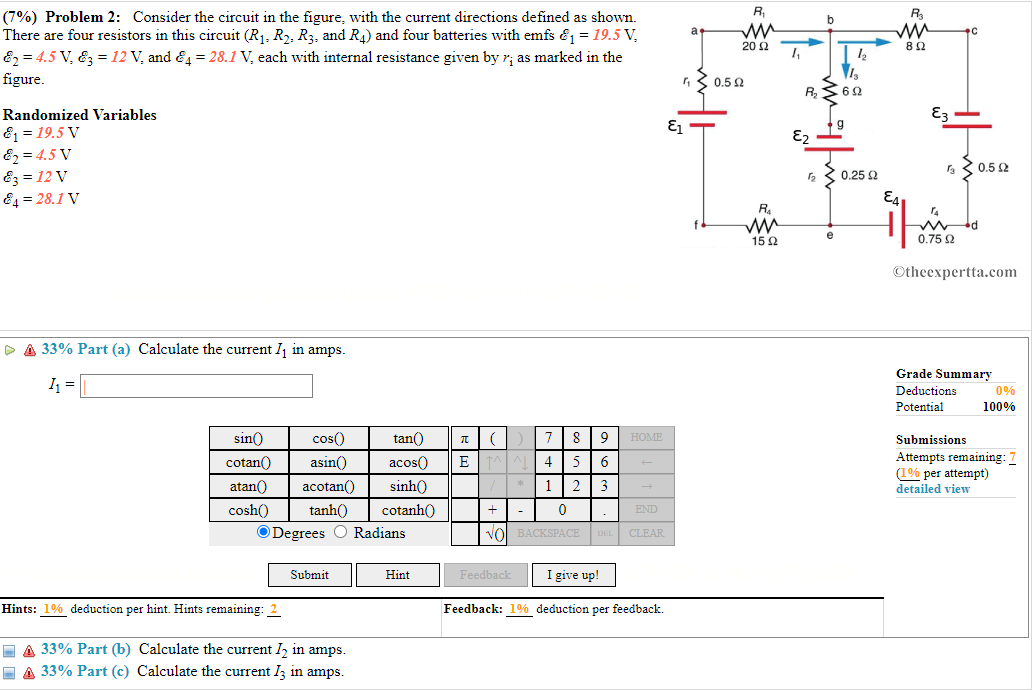

(7\%) Problem 2: Consider the circuit in the figure, with the current directions defined as shown. There are four resistors in this circuit (R1,R2,R3, and R4) and four batteries with emfs ε1=19.5 V, E2=4.5 V,E3=12 V, and E4=28.1 V, each with internal resistance given by ri as marked in the figure. Randomized Variables E1=19.5 VE2=4.5 VE3=12 VE4=28.1 V @ 33% Part (a) Calculate the current I1 in amps. I1= Hints: deduction per hint. Hints remaining: 2 Feedback: deduction per feedback.
