The circuit in the figure below has been connected for several seconds. (Let V1=4.15 V and V2=7.75 V1 ) (a) Find the
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
The circuit in the figure below has been connected for several seconds. (Let V1=4.15 V and V2=7.75 V1 ) (a) Find the

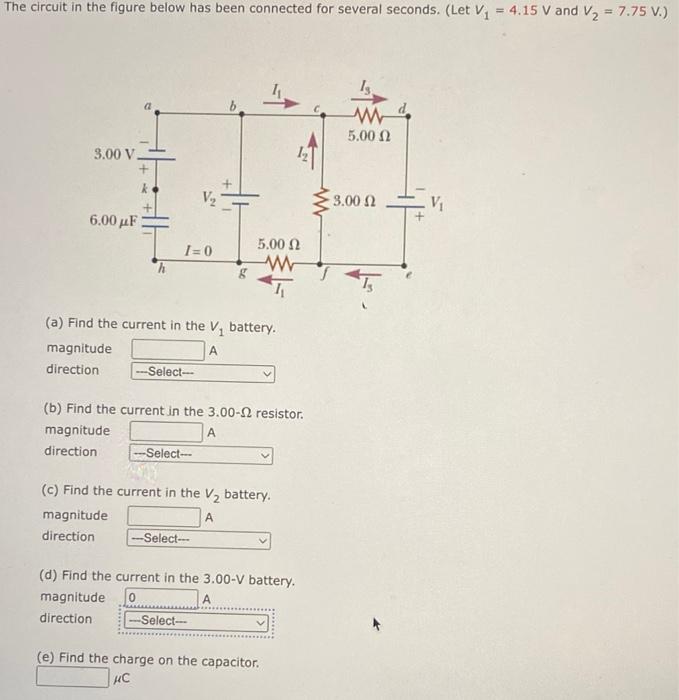

The circuit in the figure below has been connected for several seconds. (Let V1=4.15 V and V2=7.75 V1 ) (a) Find the current in the V1 battery. magnitude direction (b) Find the current in the 3.00−Ω resistor. magnitude A direction (c) Find the current in the V2 battery. magnitude A direction (d) Find the current in the 3.00−V battery. magnitude A direction (e) Find the charge on the capacitor. μC
