A wire in the shape of an "M" lies in the plane of the paper. It carries a current of 2.0 A, flowing from A to E. as sho

Post by answerhappygod »

A Wire In The Shape Of An M Lies In The Plane Of The Paper It Carries A Current Of 2 0 A Flowing From A To E As Sho 1
A Wire In The Shape Of An M Lies In The Plane Of The Paper It Carries A Current Of 2 0 A Flowing From A To E As Sho 1 (47.54 KiB) Viewed 38 times

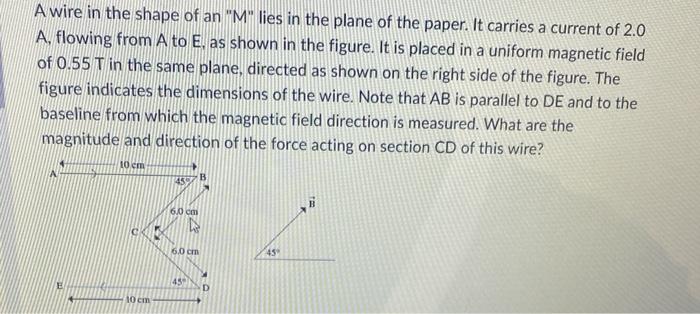

A wire in the shape of an "M" lies in the plane of the paper. It carries a current of 2.0 A, flowing from A to E. as shown in the figure. It is placed in a uniform magnetic field of 0.55 T in the same plane, directed as shown on the right side of the figure. The figure indicates the dimensions of the wire. Note that AB is parallel to DE and to the baseline from which the magnetic field direction is measured. What are the magnitude and direction of the force acting on section CD of this wire?
