9. In the diagram, ε=12 V,R1=4Ω,R2=6Ω, and R3=3Ω. Determine the currents I1,I2, and I3 at: (a) t=0, just as S is c

Post by **answerhappygod** » Thu Jul 14, 2022 8:05 pm

: 1 (37.1 KiB) Viewed 34 times

please help

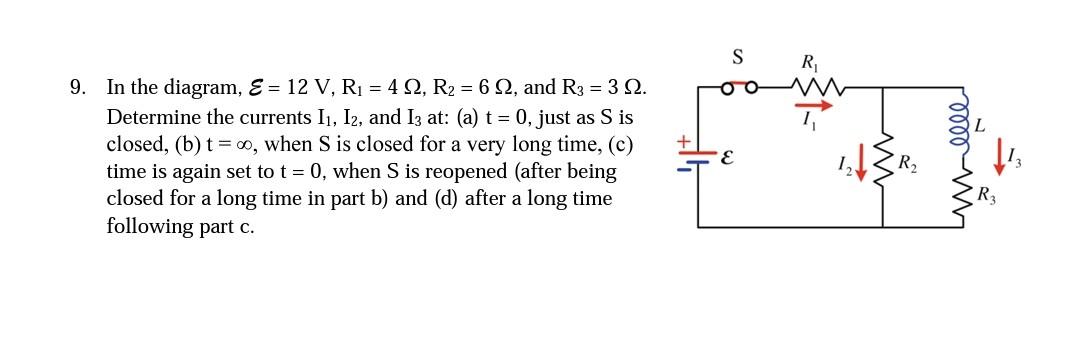

9. In the diagram, ε=12 V,R1=4Ω,R2=6Ω, and R3=3Ω. Determine the currents I1,I2, and I3 at: (a) t=0, just as S is closed, (b) t=∞, when S is closed for a very long time, (c) time is again set to t=0, when S is reopened (after being closed for a long time in part b) and (d) after a long time following part c.
