The steel bar has the original dimensions shown in the figure. (Figure 1) It is subjected to an axial load of 50 kN Est

[answerhappygod]

The Steel Bar Has The Original Dimensions Shown In The Figure Figure 1 It Is Subjected To An Axial Load Of 50 Kn Est 1 (34.33 KiB) Viewed 17 times

The Steel Bar Has The Original Dimensions Shown In The Figure Figure 1 It Is Subjected To An Axial Load Of 50 Kn Est 2 (73.98 KiB) Viewed 17 times

The Steel Bar Has The Original Dimensions Shown In The Figure Figure 1 It Is Subjected To An Axial Load Of 50 Kn Est 3 (29.79 KiB) Viewed 17 times

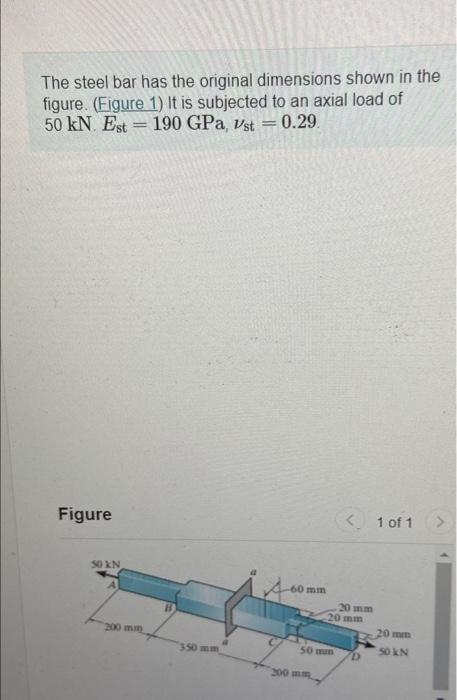

The steel bar has the original dimensions shown in the figure. (Figure 1) It is subjected to an axial load of 50 kN Est 190 GPa, Vst = 0.29. Figure < 1 of 1 > SO KN -60 mm 20 mm 20 mm 20 min 350 mm 50 mm SO KN D 300 m

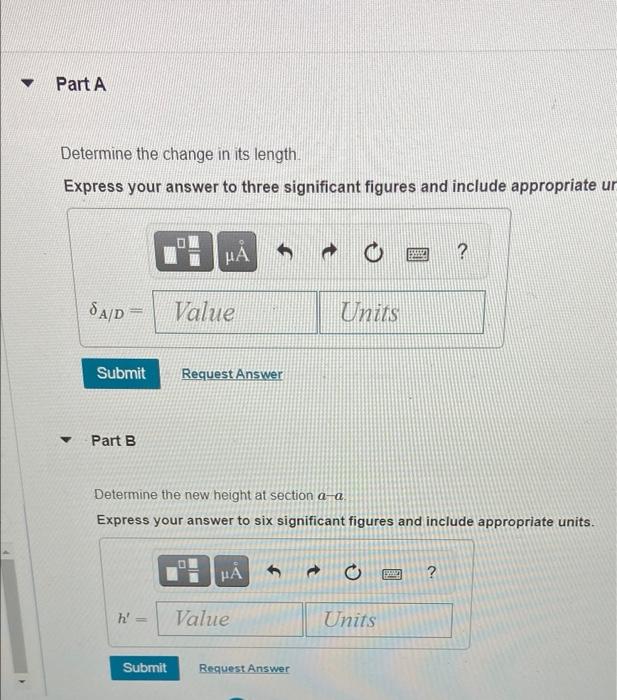

Part A Determine the change in its length. Express your answer to three significant figures and include appropriate ur HA ? 8A/D Value Units Submit Request Answer Part B Determine the new height at section a-a Express your answer to six significant figures and include appropriate units. HA ? h Value Units Submit Request Answer -

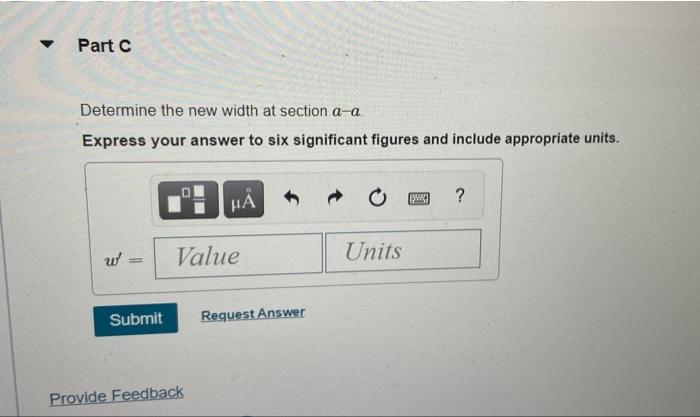

Part C Determine the new width at section a-a. Express your answer to six significant figures and include appropriate units. HA ? w Value Units Submit Request Answer Provide Feedback
